How to stop a chamfer from applying to the entire edge

NM_8739243
2-Explorer

How to stop a chamfer from applying to the entire edge

Hi Guys,

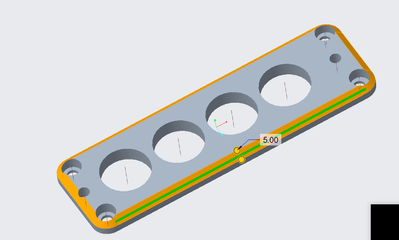

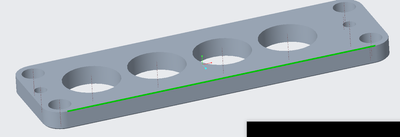

I would like to apply a chamfer to the highlighted edge.


But every time I apply the chamfer it runs along the entire circumference.


How do I apply it only to one edge.

4 REPLIES 4
tbraxton
22-Sapphire I
(To:NM_8739243)

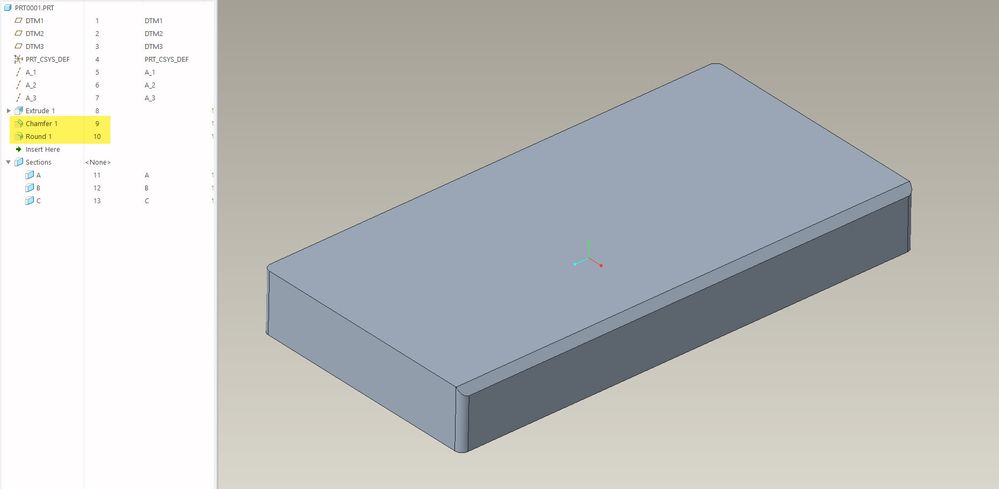

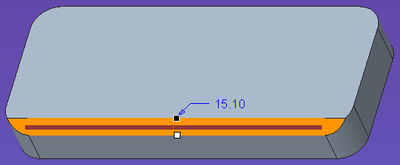

The easy way is to create the chamfer on the edge before the corners of the extrude are rounded. Picture and model tree for clarification.Create chamfer prior to rounding the vertical corners of the solidCreate chamfer prior to rounding the vertical corners of the solid

========================================
Involute Development, LLC
Consulting Engineers
Specialists in Creo Parametric

Thank you, it worked

tbraxton
22-Sapphire I
(To:NM_8739243)

NP



Would you mark the response as an accepted solution so it will indicate in the search results that this thread has a solution?

========================================
Involute Development, LLC
Consulting Engineers
Specialists in Creo Parametric
kdirth
21-Topaz I
(To:NM_8739243)

Another option is to use the chain option:

Select the edge, then holding shift select the edge again.

Additional adjacent edges can also be added while holding shift.







There is always more to learn in Creo.
