I want to make the dimension lines curved instead of straight

YY_SS_RR_
2-Explorer

I want to make the dimension lines curved instead of straight

[Software] Creo parametric (ver 9.0.2.0)

[OS] Win10

[Question]

Please tell me how to make the dimension lines I've drawn curved instead of straight.

------------------------------------------

Translated text from Japanese to English using Google translate

Subject - 寸法線を直線ではなく曲線にしたい

Body - 【ソフト】Creo parametric(ver 9.0.2.0)
【OS】Win10

【質問内容】

描画した寸法線を直線ではなく曲線にする方法を教えてください。

------------------------------------------

3 REPLIES 3

If you want angular dimensions instead of the linear dimension you need to pick the lines at the ends of the object when defining the dimension, not points.

kdirth
21-Topaz I
(To:YY_SS_RR_)

In sketcher, if you are trying to dimension the length of the curve, select the curve then both end points and place the dimension.

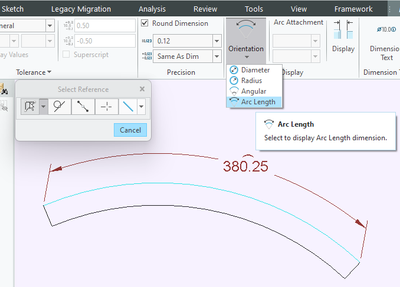

In Drawing mode, dimension arc then select arc length from Orientation menu.





There is always more to learn in Creo.

Hello @YY_SS_RR_



It looks like you have some responses from some community members. If any of these replies helped you solve your question please mark the appropriate reply as the Accepted Solution.

Of course, if you have more to share on your issue, please let the Community know so other community members can continue to help you.

Thanks,
Community Moderation Team.
