Issue for showing axis for slotted holes (PTC Creo 4.0)

VB_11781241
10-Marble

Issue for showing axis for slotted holes (PTC Creo 4.0)

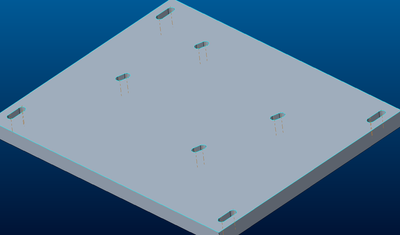

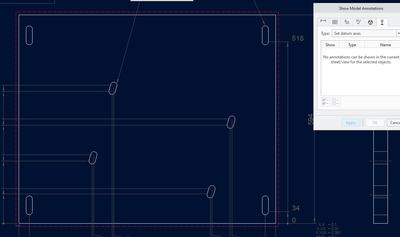

I am trying to show axis for slotted holes,

Creo 4.0




ACCEPTED SOLUTION

Accepted Solutions

Solution what i have found is,

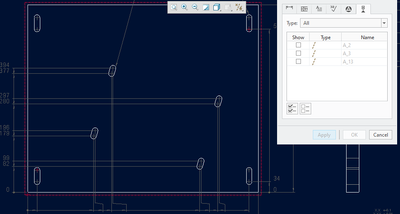

if i create axis for each slotted holes it will appears in drawing







View solution in original post

6 REPLIES 6

Hi @VB_11781241



Thank you for your question!



I’d like to recommend to bring more details and context to your initial inquiry.

It also helps to have screenshot(s) to better understand what you are trying to do in your process.



Please refer to this guideline to make your questions more likely to receive a quick and useful answer.

This will increase your chances to receive meaningful help from other Community members.



Furthermore, please consult this Community Search guideline as well, which boosts up your chances of finding a resolution to your topic(s) much faster.



Thank you for your participation and please let me know if you need further assistance!



Best regards,

Catalina
PTC Community Moderator

You are in the wrong forum.



PTC has two CAD systems:    Creo+ and Creo Parametric    and     Creo Elements Direct.



Which makes it confusing.



More, for Creo Elements Direct:

- The 3D software name is Modeling, and

- The 2D software name is Drafting.



For Creo+ and Creo Parametric, use only this tab:










You should move your post to this community to have a better chance to get an answer.

To move your post, click on the three vertical dots on your initial post and click on "Notify Moderator".







http://kotom.eng.free.fr

Hello @VB_11781241,



Your post has been moved to the designated Creo+ and Creo Parametric discussion board.

If you have questions regarding this edit, please let me know.

Thanks for using the Community!

Best regards,

Catalina
PTC Community Moderator

Solution what i have found is,

if i create axis for each slotted holes it will appears in drawing







To create specific axes in protrusion, you can also add geometry points to the sketch. Any such point generates an axis in the resulting feature. This can be very useful in situations like when you are creating an "racetrack" slot and want to have an axis at the center of the slot, etc.
