Assistance Needed with Automating Dimension Report in Creo TOOLKIT

[Haydena]

Dear Sirs,

I hope this message finds you well.

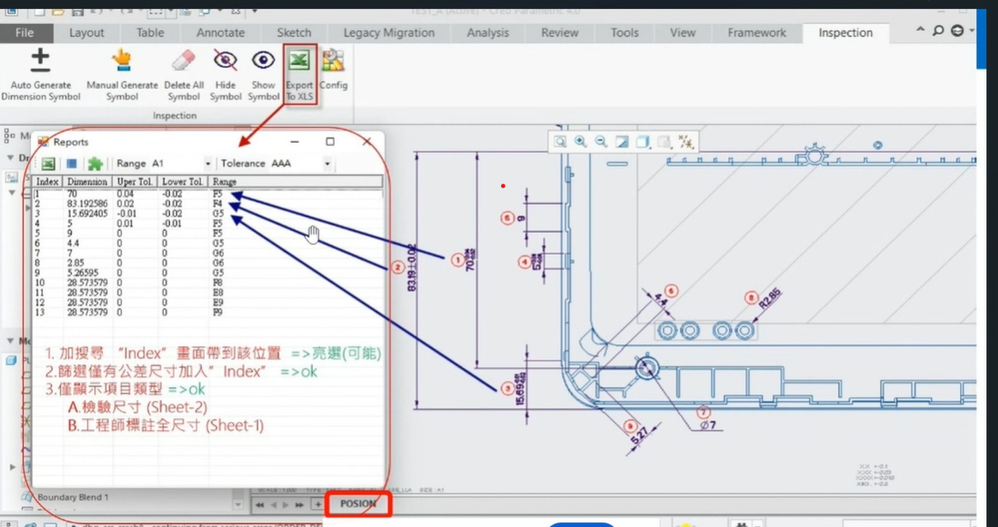

I am reaching out regarding the Creo drawing inspection function shown in the attached image. This function automatically generates a dimension report and allows for the export of dimension data to an Excel file via the "Export to XLS" button.

I am looking to automate this process using Creo TOOLKIT, specifically to automatically extract dimensions and generate the report. However, I am not very experienced with programming.

I would greatly appreciate any guidance, tips, or code examples on how to achieve this. Thank you in advance for your assistance!

Best regards,
Lan Haydena

[Catalina]

Hi @Haydena

Thank you for your question!

Your post appears well documented but has not yet received any response. I am replying to raise awareness. Hopefully, another community member will be able to help.

Also, feel free to add any additional information you think might be relevant.

Best regards,

[RPN]

There is not a lot of feedback here. For what it worth, to give you a clue how this could work!

#
# export only a dimension value from type diameter
# add tolernce values and inspection basic info

# sample out (of course out is without the '#')
# Symbol,Value,TolL,TolH,Inspection,Basic
# d2,32.000,0.005334,0.005334,No,No
# d12,5.334,0.005334,0.005334,No,No
# d27,10.667,0.005334,0.005334,No,No

proc SimpleByType {model {sep {,}}} {

	set B(0) No
	set B(1) Yes
	set dims [ps_dim list -model $model]

	set out [file join [ps_pwd] dim-info-by-type--$model.csv]

	set fp [open $out w]


	puts $fp "Symbol,Value,TolL,TolH,Inspection,Basic"

	foreach item $dims {

		# assign id sym val to a var from the list item
		foreach {id sym val} $item break

		# get the dim Object handle
		set dimObj [ps_dim from_ids $id]

		if {[string equal [$dimObj cget -type ] DIAMETER ] } {

			# get the tolerance
			set tol 	[$dimObj  cget -tolerance ]
			# assign lower, upper value
			set toll 	[lindex $tol 0 ]
			set tolu 	[lindex $tol 1 ]
			#export if inspection or basic
			set insp 	[$dimObj  cget -inspection ]
			set basic 	[$dimObj  cget -basic ]

			set data [join [list $sym [format %.3f $val] $toll $tolu $B($insp) $B($basic)] $sep]
			puts $fp $data
		}


	}

	# close the file
	close $fp

}

Just plain Tcl

[YaroslavSin]

---

Just plain Tcl

---

Good... But ho to use this example?

[RPN]

Hmm, check the Tcl Wiki, write a Mail, get the env, be surprised 😉
