Solved: How to add "Text Symbol" to dimension by TOOLKIT?

XJ_10040599 · ‎Jun 16, 2022

I am using Creo Parametric - Release 4.0 (connected) Release 4.0 and DatecodeM150

请问如何使用TOOLKIT给尺寸文本添加“文本符号”？

How to add "text symbol" to dimension text using TOOLKIT?

Translated with google translate by Iuliana Nuta, 16. june 2022

remy · ‎Jun 16, 2022

Hi your application needs to perform the following:

that's to say Select an existing dimension then browse Dimension tab > and pick a symbol in the palette.

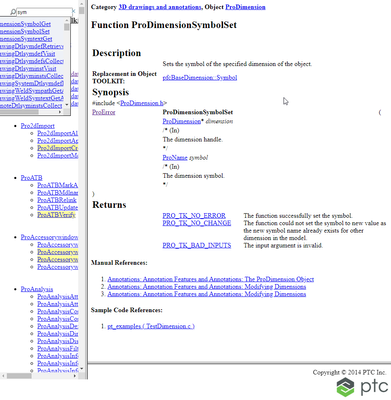

Once your application gets the dimension, here is the function to call to set a Symbol: ProDimensionSymbolSet()

The page points to the shipped example: TestDimension.c:

remy · ‎Jun 16, 2022

Hi your application needs to perform the following:

that's to say Select an existing dimension then browse Dimension tab > and pick a symbol in the palette.

Once your application gets the dimension, here is the function to call to set a Symbol: ProDimensionSymbolSet()

The page points to the shipped example: TestDimension.c:
