Plot

ldante
11-Garnet
11-Garnet
‎Dec 17, 2020 08:17 AM
‎Dec 17, 2020 08:17 AM

Plot

Hi,



Good day.  Anyone could help me to make a tabulated graph similar to what I attached

Material is aluminum

Moment of inertia is given 58.97 cm^4

I am using  Prime 6.0

Design pressure is given

deflection criteria  L/200

Thank you.

Labels:
Preview file
87 KB
0 Kudos
Notify Moderator
3 REPLIES 3
LucMeekes
23-Emerald III
23-Emerald III
(To:ldante)
‎Dec 17, 2020 08:22 AM
‎Dec 17, 2020 08:22 AM

That's all?

If you provide an expression that relates h to b, probably with the other data you provide as (extra) parameters, we can create the plot.



Success!
Luc

Notify Moderator
ValeryOchkov
24-Ruby IV
24-Ruby IV
(To:ldante)
‎Dec 17, 2020 10:35 AM
‎Dec 17, 2020 10:35 AM

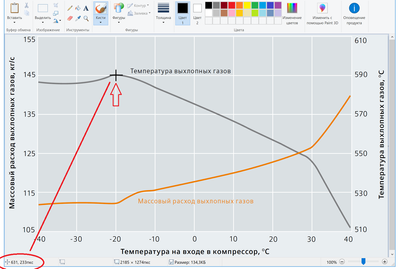

Create please a matrix in Mathcad and use interpolation/

See please one picture from my book about this priblem


Notify Moderator
Fred_Kohlhepp
23-Emerald I
23-Emerald I
(To:ldante)
‎Dec 17, 2020 02:23 PM
‎Dec 17, 2020 02:23 PM

How are you calculating deflection?  Deflection depends on pressure, h, and b.  If we have that relationship we can develop this graph, but (Especially in Prime) the annotation will be a problem.
