Datum axis display style

  • February 2, 2016
  • 1 reply
  • 1309 views

Hi All,

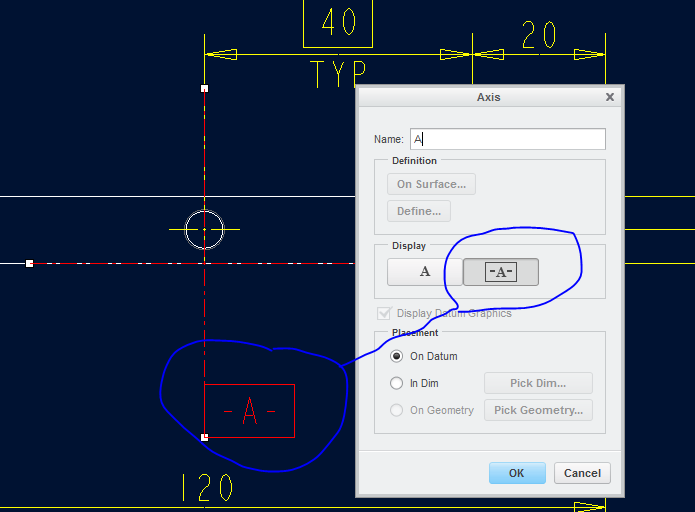

How do I change the style of the datum axis display in a drawing? I want to change from:

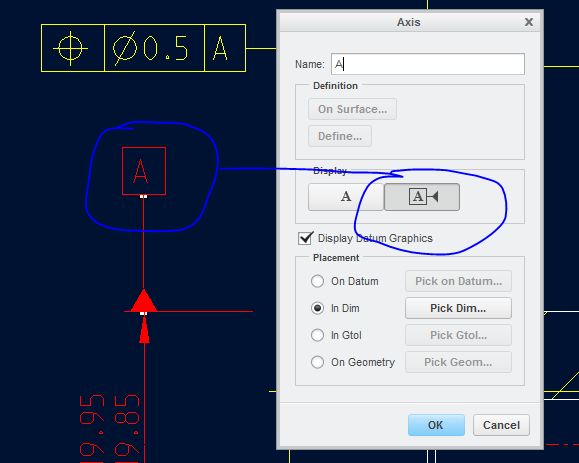

to:






I'm guessing its somewhere in the config however having played around with a number of settings i am still yet to achieve what I want.



Regards,

Joe


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

R
RonSt.Pierre12-Amethyst
12-Amethyst
February 2, 2016

I believe in your .dtl, set the following

new_iso_set_datums YES

then this is self explanitory

set_datum_triangle_display FILLED

then perhaps, because I have not found the difference

gtol_datums STD_ASME

you can try them at FILE > Prepare > drawing properties > detail options (select change) then add/change the options as needed
