Point Constraint Values Unreadable, Increase Size

[Beuk]

Hello,

Whenever I print to pdf, the point constraints result plot lose part of its resolution, making them close to unreadable. Is there a way to increase the font size of those particular fonts bigger?

I have tried playing around with these config parameters with no luck:

default_ui_font 10
text_height_factor 40.000000
model_tree_font 10

[Beuk]

I managed to change the fonts of the menus, but the point constraint values stay the same.

[skunks]

I don't know how to change the font size,

but I always use measured values on springs to ground for bearing reactions.

tutorial

cf. page 39

[skunks]

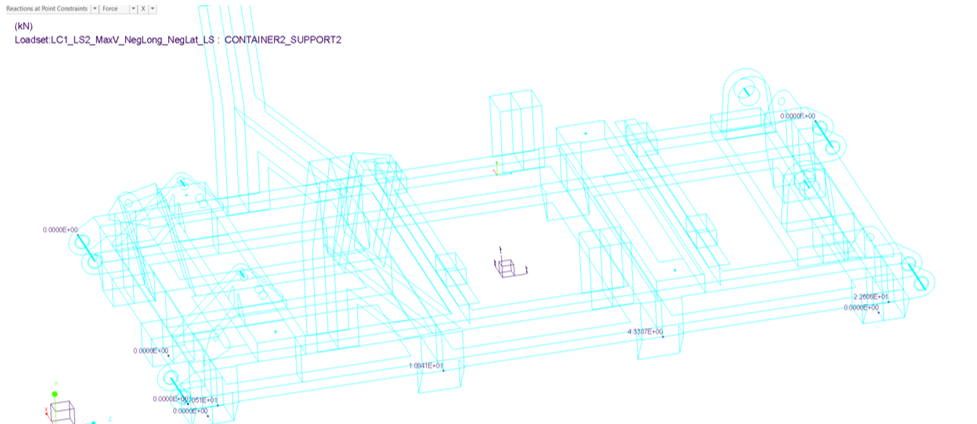

my workaround in creo simulate 2: screenshot

[Beuk]

Thanks for your anwser skunks.

I am using Creo 10. I have swapped one of the point constraints for one "spring to ground". How do you manage to now see that spring force / ground reaction in the result window? Only way I can find that value is by using a measurement.

[skunks]

[skunks]

--> Creo data as an example
