Create a 3-D plot of a function with two variable

fahmed-2
13-Aquamarine

Create a 3-D plot of a function with two variable

Hello All,



I am trying to generate a 3-D plot for a function. I am having the following issue.






Please help.





ACCEPTED SOLUTION

Accepted Solutions
ttokoro
20-Turquoise
(To:fahmed-2)

Requires long time to make plot.




View solution in original post

24 REPLIES 24
ttokoro
20-Turquoise
(To:fahmed-2)

Requires long time to make plot.




fahmed-2
13-Aquamarine
(To:ttokoro)

Thank you @ttokoro . What is purpose of using third brackets " [  ]". Is this for assigning the matrix values in each corresponding cells inside the "Ans"

ttokoro
20-Turquoise
(To:fahmed-2)

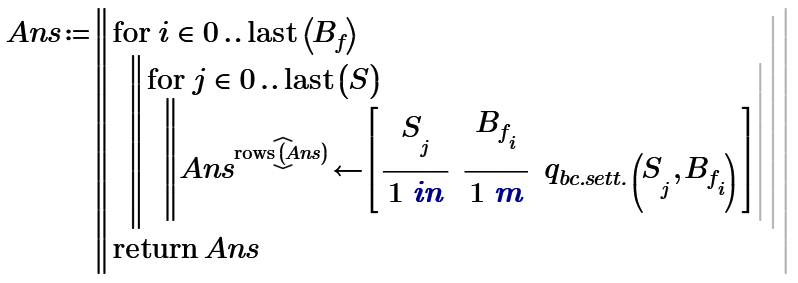

Your sheet shows error mesage for x and y data must have no unit. So I make Ans as [x y z-value with unit].

And stack all S and Df  and  its Ans.

I try to use [NaN NaN NaN] to stack. In this plot, z axis also has no unit.






fahmed-2
13-Aquamarine
(To:ttokoro)

@ttokoro thank you. why was "not a number (NaN)" required for stacking...should not it be stacked by itself without using NaN. Please help

ttokoro
20-Turquoise
(To:fahmed-2)

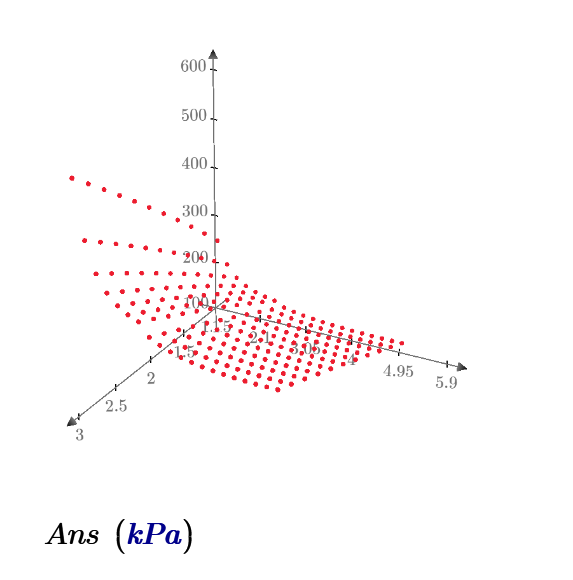

Instead of point data, [NaN NaN NaN] turn off to connect each 3D point [x y z] data by stacking.

Werner_E
25-Diamond I
(To:fahmed-2)

In fact, the error message reveals the cause and also gives the hint to the solution of the problem:
The variables for the independent variables (x, y) must (unfortunately) be unitless. Only the dependent variable (z), i.e. the function result, may have a unit.

So omit the unit meter at the range variables and add them when calling the function.

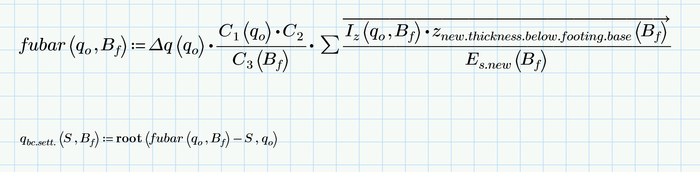

The plot takes "endless" to finish because the function seems to be defined quite inefficient.

You sure should consider to implement the improvement I suggested in another thread of yours which at least speeds up the calculation for the factor 5.

Personally I would prefer using CreateMesh() instead of range variables



fahmed-2
13-Aquamarine
(To:Werner_E)

Thank you @Werner_E . Is it possible to make the plot as individual dots

Werner_E
25-Diamond I
(To:fahmed-2)


@fahmed-2 wrote:

Thank you @Werner_E . Is it possible to make the plot as individual dots

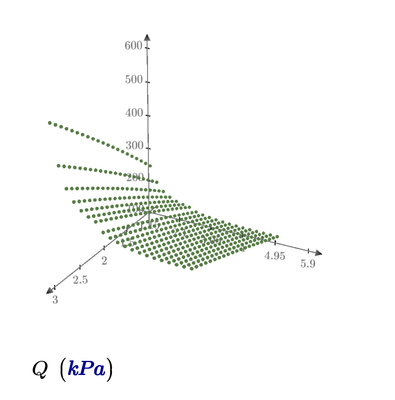

Sure! Simply format the plot that way

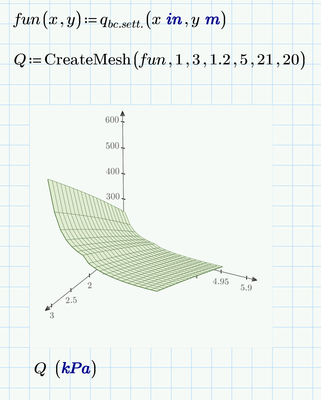

I used the data  structure created with CreateMeashj() but you can do the same with the plot using the range variables.



fahmed-2
13-Aquamarine
(To:Werner_E)

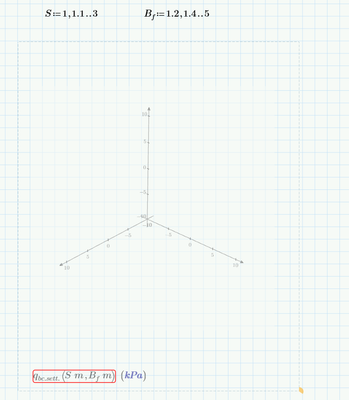

Also, I am having the following image using your process @Werner_E . The box was marked "red". Please help






Werner_E
25-Diamond I
(To:fahmed-2)

And the error message is?

As far as I see your comp is still computing......



Personally I would prefer using the CreateMesh() function anyway




File (Prime9) with a speedier function attached





fahmed-2
13-Aquamarine
(To:Werner_E)

Wish I I had 9 but unfortunately, mine is 7

Werner_E
25-Diamond I
(To:fahmed-2)

I guess it should work as well in P7. P9 is not really a huge step forward (sure not worth any money).

It takes very long to calculate, even if you apply the speed up modification I explained in the other thread of yours.



Here is the speed-up again as used in the current sheet of yours:


Mind the vectorization!





fahmed-2
13-Aquamarine
(To:Werner_E)

how do I get "CreateMesh" function

Werner_E
25-Diamond I
(To:fahmed-2)


@fahmed-2 wrote:

how do I get "CreateMesh" function


Its a standard function in Prime. Its sure available in your Prime7 as well.

I guess it was even implemented in the very first Prime version 😉 The 3D plot has not improved since then.

But maybe @LucMeekes  is able and willing to convert my attached sheet for you in Prime 7 format - he has found a way to do so and is able to do.





fahmed-2
13-Aquamarine
(To:Werner_E)

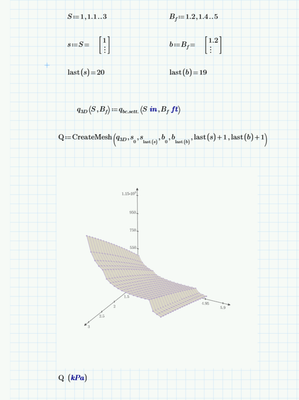

Thank you @Werner_E and @ttokoro . It works great. I was wondering how to extract values from the Mesh function. For example, here, if I need all the values of Q for different values of B_f at a constant S or, get all values of Q for different values of S at a constant B_f. Please help.






Werner_E
25-Diamond I
(To:fahmed-2)

Q is a nested vector containing matrices for the x, y and z values of the points to be plotted.

If you need the value for a specific S and B.f value, simply use the original function to get it, not Q.




And if your goal is to highlight some specific positions in the 3D plot, you could do it as shown here




Actually I don't understand why you refuse to speed up your function calculation as already shown.

LucMeekes
23-Emerald III
(To:Werner_E)

Here is.



Success!
Luc

fahmed-2
13-Aquamarine
(To:LucMeekes)

Thank you @LucMeekes

ttokoro
20-Turquoise
(To:fahmed-2)


fahmed-2
13-Aquamarine
(To:ttokoro)

Thank you @ttokoro.  Looks amazing!!

Werner_E
25-Diamond I
(To:ttokoro)

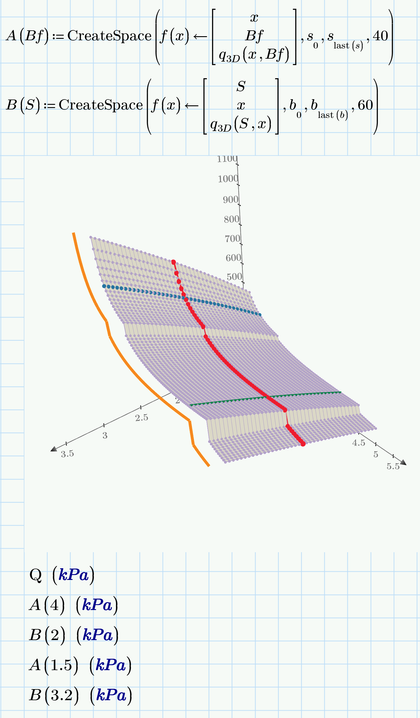

Can alternatively be achieved using CreateSpace()


May be formatted with lines and/or points. Unfortunately Prime provides only one size which is equally valid for points and lines. Workaround would be to use two plot traces 😞



fahmed-2
13-Aquamarine
(To:Werner_E)

Thank you @Werner_E . This is awesome!! Please advise as why did you put numbers 40 and 60 for defining A and B, respectively.

Werner_E
25-Diamond I
(To:fahmed-2)


@fahmed-2 wrote:

Thank you @Werner_E . This is awesome!! Please advise as why did you put numbers 40 and 60 for defining A and B, respectively.


Just to get a finer resolution. Default value would be 20 if you omit this parameter (see the help info for CrreateSpace()  and also for CreateMesh() ).


As you can see in the picture I also used a finer grid for the surface, too, to et a bit more details. It takes longer to calculate, but as I implemented the already mentioned speedier function we can wait for it to finish.

fahmed-2
13-Aquamarine
(To:Werner_E)

Salute!!
