How to plot a point in 3-D and Rotation of the point ?

lvl107
20-Turquoise
20-Turquoise
‎Nov 19, 2020 02:12 PM
‎Nov 19, 2020 02:12 PM

How to plot a point in 3-D and Rotation of the point ?

Hello Everyone.
From :



To : 1. How to plot a point in 3-D and :

       2. Rotation of that point a angle t (say, = Pi/2) about X-axis ?
Thanks in advance for your time and help.
Regards.

Labels:
0 Kudos
Notify Moderator
137 REPLIES 137
lvl107
20-Turquoise
20-Turquoise
(To:lvl107)
‎Sep 27, 2024 03:25 AM
‎Sep 27, 2024 03:25 AM

02-1-2-4-6 (1).PNG02-1-2-4-6 (2).PNG

02-1-2-4-6 (3).PNG02-1-2-4-6 (4).PNG

(view in My Videos)

Preview file
33737 KB
02-1-2-4-6. P1-(4)F To A2-(8+6)F To A4-(8+6)F To A6-(8+6+12)F .xmcd
0 Kudos
Notify Moderator
lvl107
20-Turquoise
20-Turquoise
(To:lvl107)
‎Oct 06, 2024 02:25 PM
‎Oct 06, 2024 02:25 PM

02-3-7 (1).PNG

02-3-7 (2).PNG



02-2-3-7 (3).PNG

02-2-3-7 (4).PNG

(view in My Videos)





Preview file
34967 KB
02-2-3-7. P2-(6)F - P3-(8)F To A7-(6+8+12+12)F (Snub Cube).xmcd
0 Kudos
Notify Moderator
lvl107
20-Turquoise
20-Turquoise
(To:lvl107)
‎Oct 12, 2024 02:58 AM
‎Oct 12, 2024 02:58 AM

02-7. (1).png

02-7. (2).png



02-7. (3).png

(view in My Videos)

---

02-7. (4).png

(view in My Videos)

0 Kudos
Notify Moderator
lvl107
20-Turquoise
20-Turquoise
(To:lvl107)
‎Oct 15, 2024 02:11 PM
‎Oct 15, 2024 02:11 PM

02-7-X. (3).PNG

(view in My Videos)



02-7-X. (4).PNG

(view in My Videos)

Preview file
22754 KB
Preview file
23180 KB
02-7. P2-(6)F -- A2-(6+8)F To A7-(6+8+12+12)F .xmcd
0 Kudos
Notify Moderator
lvl107
20-Turquoise
20-Turquoise
(To:lvl107)
‎Feb 18, 2025 02:35 AM
‎Feb 18, 2025 02:35 AM

02-7-Y (1).PNG

02-7-Y (2).PNG

02-7-Y (3).PNG

(view in My Videos)

02-7-Y (4).PNG

(view in My Videos)



Preview file
16253 KB
Preview file
13580 KB
02-7-Y. P2-(6)F, P3-(8)F, A2-(6+8)F, A5-(6+8+12)F To A7-(6+8+12+12)F (Snub Cube).xmcd
0 Kudos
Notify Moderator
lvl107
20-Turquoise
20-Turquoise
(To:lvl107)
‎Mar 15, 2025 01:50 PM
‎Mar 15, 2025 01:50 PM

02-7-Z (1).PNG



02-7-Z (2).PNG



02-7-Z (3).PNG

(view in My Videos)

Preview file
12787 KB
02-7-Z. P2-(6)F, A2-(6+8)F To A7-(6+8+12+12)F (Snub Cube).xmcd
0 Kudos
Notify Moderator
lvl107
20-Turquoise
20-Turquoise
(To:lvl107)
‎Mar 31, 2025 01:32 PM
‎Mar 31, 2025 01:32 PM




(view in My Videos)


(view in My Videos)


(view in My Videos)

Preview file
26670 KB
Preview file
28815 KB
Preview file
24384 KB
02-7-Y-a-b-c. P2-(6)F, P3-(8)F, A2-(6+8)F, A5-(6+8+12)F To A7-(6+8+12+12)F (Snub Cube).xmcd
0 Kudos
Notify Moderator
lvl107
20-Turquoise
20-Turquoise
(To:lvl107)
‎Apr 12, 2025 12:51 AM
‎Apr 12, 2025 12:51 AM








(view in My Videos)


(view in My Videos)


(view in My Videos)


(view in My Videos)


(view in My Videos)

00. A7-(6+8+12+12)F ( Snub Cube ).xmcd
Preview file
23224 KB
Preview file
24888 KB
Preview file
21276 KB
Preview file
23043 KB
Preview file
21837 KB
0 Kudos
Notify Moderator
lvl107
20-Turquoise
20-Turquoise
(To:lvl107)
‎Apr 30, 2025 03:16 PM
‎Apr 30, 2025 03:16 PM


(view in My Videos)




(view in My Videos)




(view in My Videos)




(view in My Videos)



00. A7-(6+8+12+12)F ( Snub Cube ).xmcd
Preview file
32184 KB
Preview file
34687 KB
Preview file
36752 KB
Preview file
25453 KB
0 Kudos
Notify Moderator
lvl107
20-Turquoise
20-Turquoise
(To:lvl107)
‎May 01, 2025 09:03 PM
‎May 01, 2025 09:03 PM




(view in My Videos)

00. A7-(6+8+12+12)F ( Snub Cube ).xmcd
Preview file
27519 KB
0 Kudos
Notify Moderator
lvl107
20-Turquoise
20-Turquoise
(To:lvl107)
‎May 13, 2025 03:31 PM
‎May 13, 2025 03:31 PM


(view in My Videos)

(view in My Videos)

(view in My Videos)

(view in My Videos)



00. A7-(6+8+12+12)F ( Snub Cube ).xmcd
Preview file
24211 KB
Preview file
23578 KB
Preview file
24063 KB
Preview file
25222 KB
0 Kudos
Notify Moderator
lvl107
20-Turquoise
20-Turquoise
(To:lvl107)
‎May 15, 2025 02:17 PM
‎May 15, 2025 02:17 PM




(view in My Videos)



(view in My Videos)



(view in My Videos)



(view in My Videos)



(view in My Videos)

00. A7-(6+8+12+12)F ( Snub Cube ).xmcd
Preview file
22203 KB
Preview file
23898 KB
Preview file
22887 KB
Preview file
23529 KB
Preview file
23136 KB
0 Kudos
Notify Moderator
lvl107
20-Turquoise
20-Turquoise
(To:lvl107)
‎Jul 02, 2025 09:38 PM
‎Jul 02, 2025 09:38 PM


(view in My Videos)

(view in My Videos)

(view in My Videos)

(view in My Videos)

(view in My Videos)

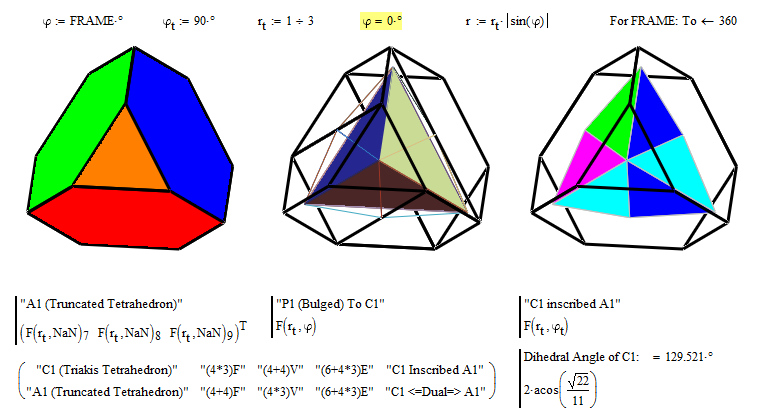

01. A1 , A4 , A2 , A3 , A6 , A5 .xmcd
Preview file
20468 KB
Preview file
21885 KB
Preview file
20841 KB
Preview file
21545 KB
Preview file
27365 KB
0 Kudos
Notify Moderator
lvl107
20-Turquoise
20-Turquoise
(To:lvl107)
‎Oct 01, 2025 12:31 PM
‎Oct 01, 2025 12:31 PM

02-7-(x) 1.png02-7-(x) 2.png02-7-(x) 3.png02-7-(x) 4.png02-7-(x) 5.png02-7-(x) 6.png

(view in My Videos)

(view in My Videos)

(view in My Videos)

(view in My Videos)

(view in My Videos)





02-7-(x). A7-(6+8+12+12)F ( Snub Cube ).xmcd
Preview file
26975 KB
Preview file
26933 KB
Preview file
27093 KB
Preview file
26696 KB
Preview file
26961 KB
0 Kudos
Notify Moderator
lvl107
20-Turquoise
20-Turquoise
(To:lvl107)
‎Nov 02, 2025 11:52 AM
‎Nov 02, 2025 11:52 AM

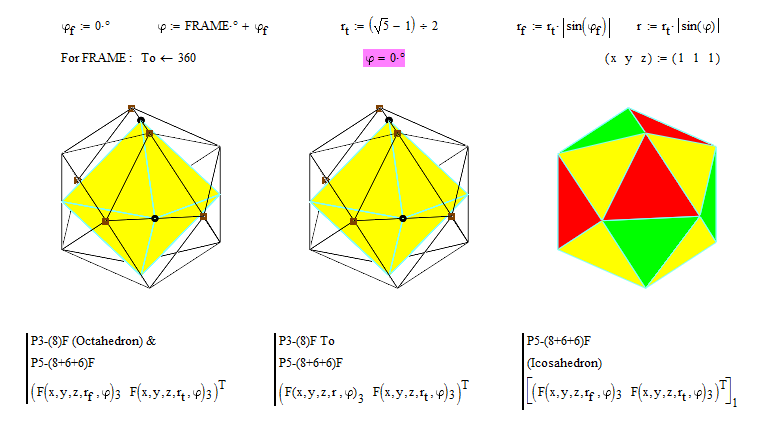

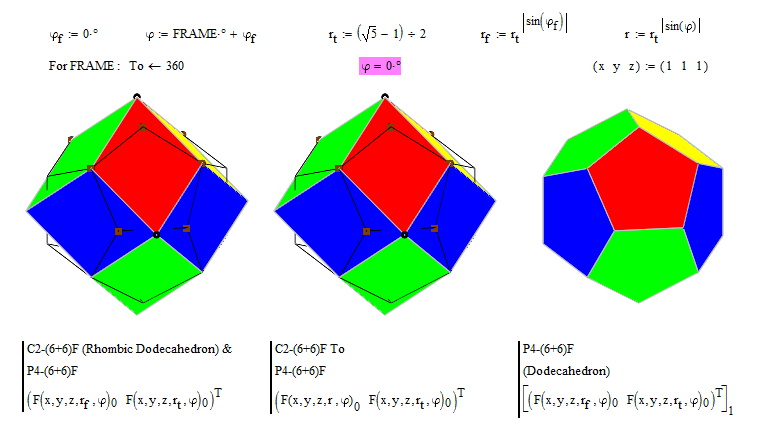

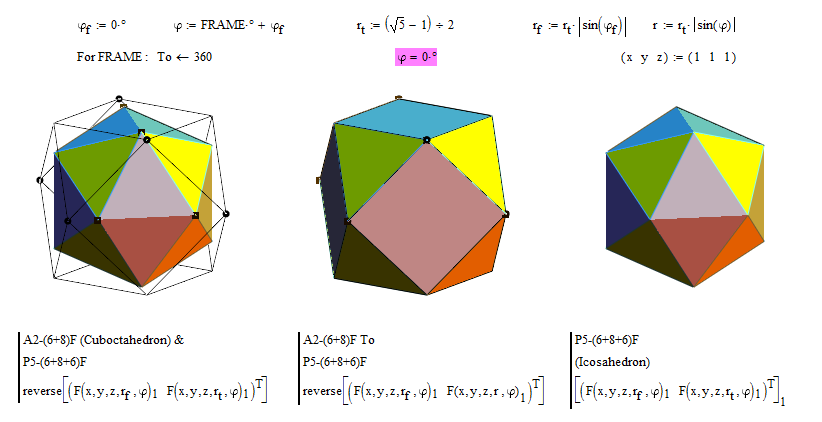

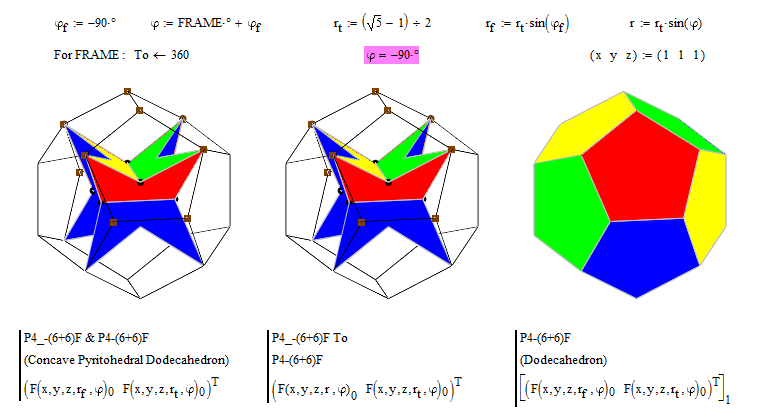

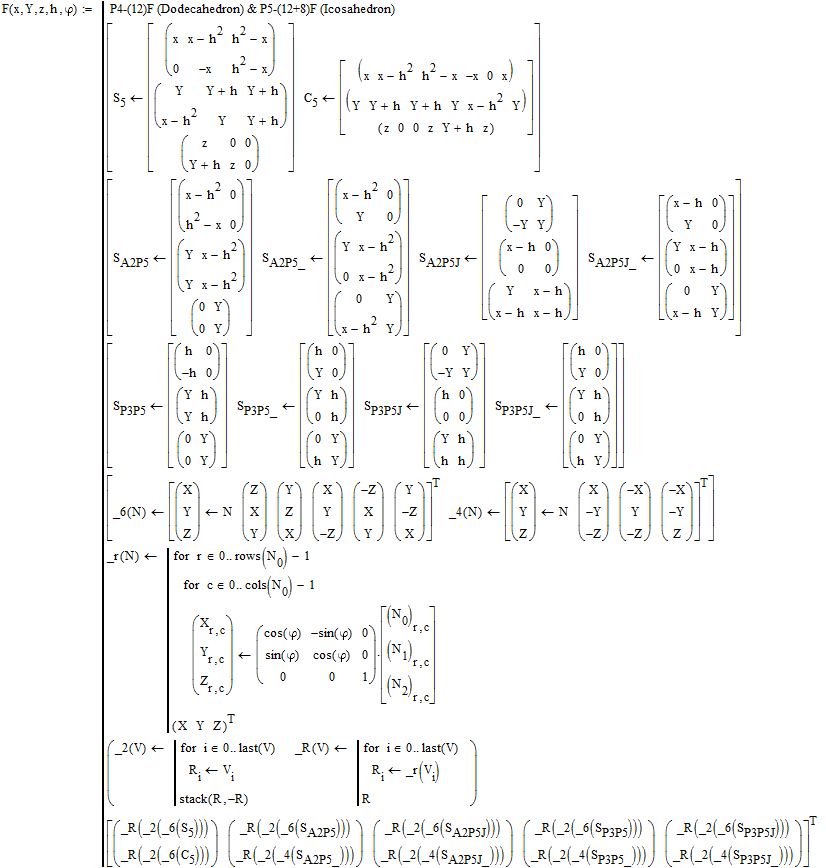

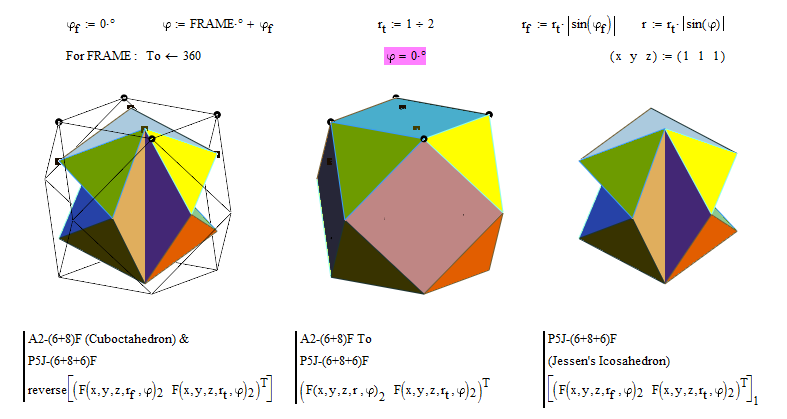

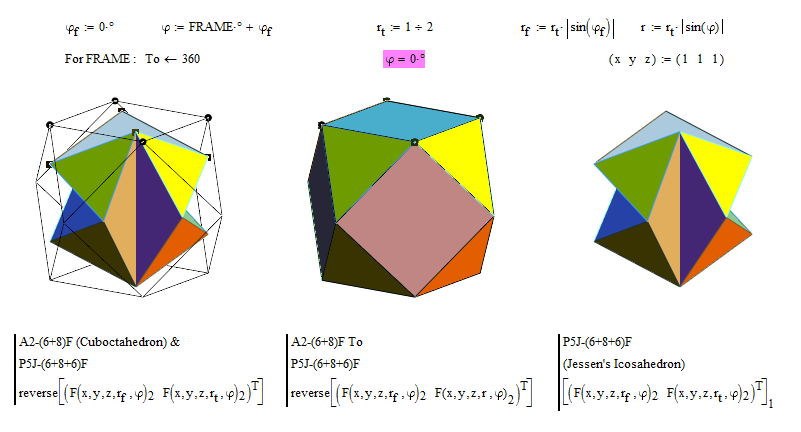

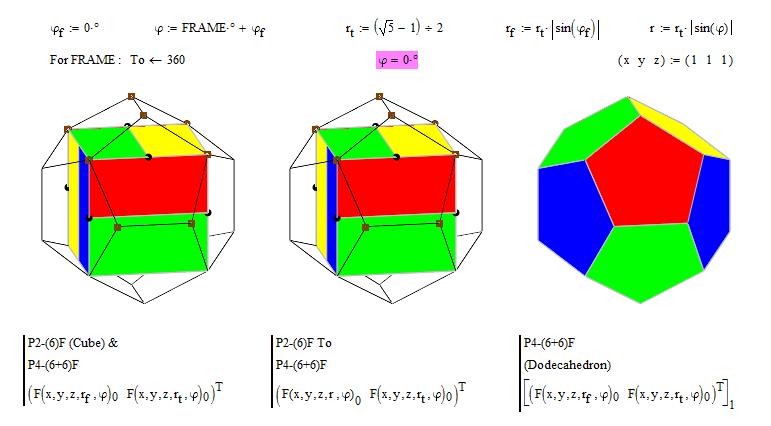

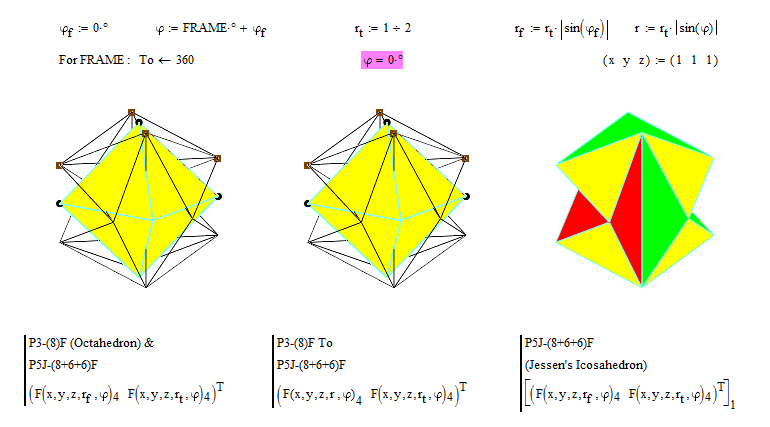

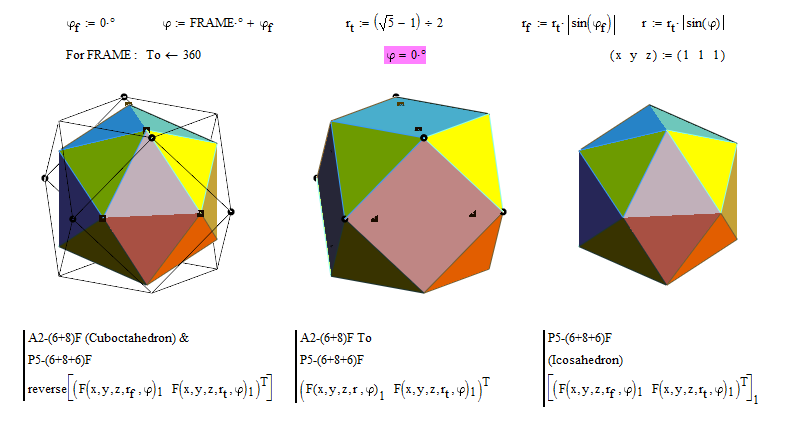

02-4-1-0.png02-4-1-a.png02-4-1-b.png02-4-1-c.png02-5-1-d.png02-5-1-e.png02-5-1-f.png02-5-1-g.png



(view in My Videos)

(view in My Videos)

(view in My Videos)

(view in My Videos)

(view in My Videos)

(view in My Videos)

(view in My Videos)

02-4. P2 , C2 , P4_ -- P4 ,,, A2 -- P5 , P5J , P3 -- P5 , P5J .xmcd
Preview file
20791 KB
Preview file
21122 KB
Preview file
21017 KB
Preview file
21909 KB
Preview file
21419 KB
Preview file
21299 KB
Preview file
21031 KB
Notify Moderator
StuartBruff
23-Emerald IV
23-Emerald IV
(To:lvl107)
‎Nov 02, 2025 03:36 PM
‎Nov 02, 2025 03:36 PM

Nice.  It's a shame one can't create such lots as readily in Mathcad Prime.



https://community.ptc.com/t5/Mathcad/Why-rotatemesh-is-in-red/m-p/766304/highlight/true#M199023



Stuart

Notify Moderator
lvl107
20-Turquoise
20-Turquoise
(To:StuartBruff)
‎Nov 03, 2025 01:47 PM
‎Nov 03, 2025 01:47 PM

Hello, Stuart. 😊

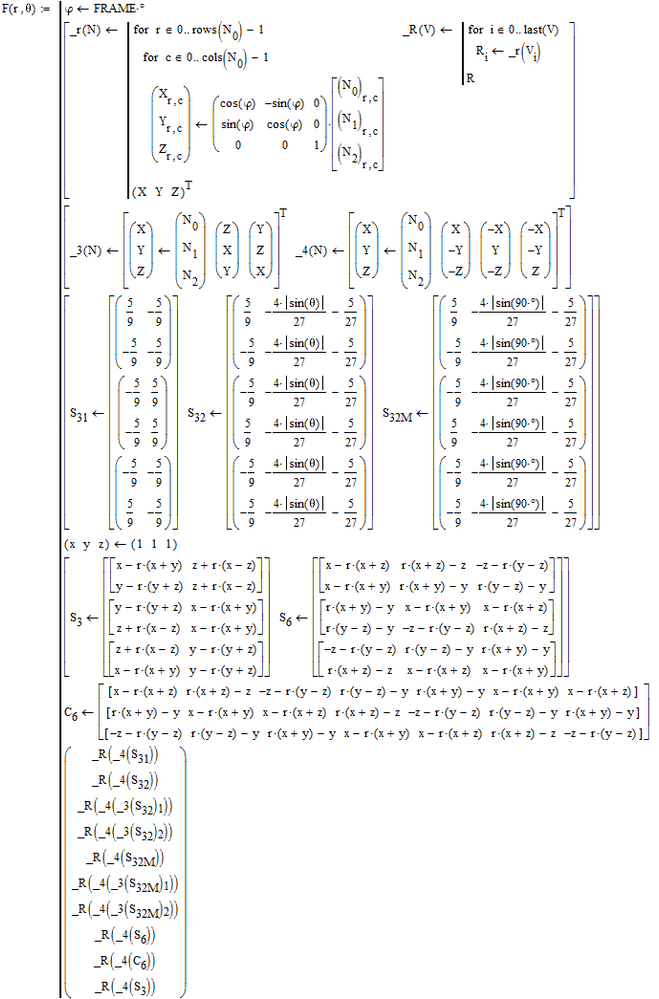

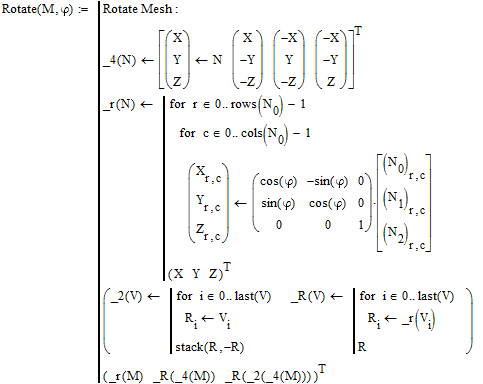

Rotate( _ , _ ).png

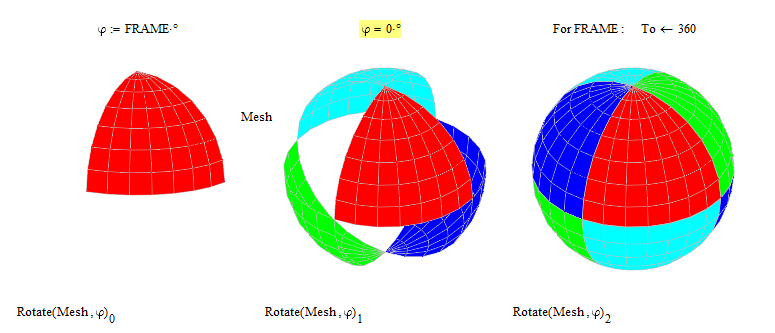

Rotate Mesh.PNG



(view in My Videos)



Regards.

Loi.



( Correction of previous post : )




(view in My Videos)

(view in My Videos)



02-4. P2 , C2 , P4_ -- P4 ,,, A2 -- P5 , P5J , P3 -- P5 , P5J .xmcd
Preview file
22619 KB
Preview file
23472 KB
Preview file
18265 KB
Rotate Mesh.xmcd
Notify Moderator
StuartBruff
23-Emerald IV
23-Emerald IV
(To:lvl107)
‎Nov 03, 2025 02:10 PM
‎Nov 03, 2025 02:10 PM

Hi, Loi



Out of curiosity, could you produce a video of one of these cuboids rotating and passing through a hole in the other one?



I did have a worksheet that did that, but I've got no idea where it is now.

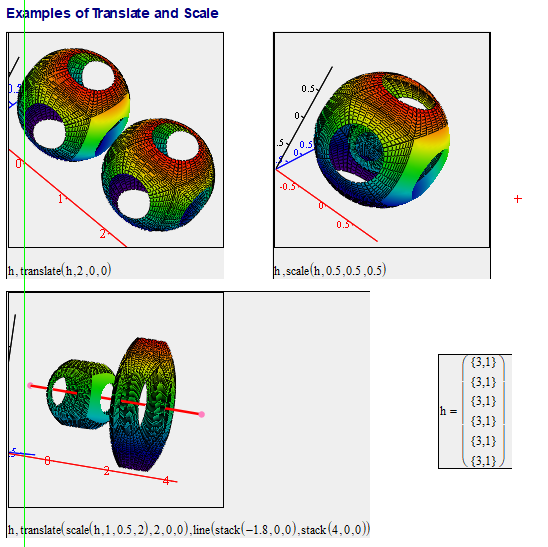

2021 12 30 a.png



I think the following worksheet produced the cuboids, but I can't confirm that as I've only got Mathcad Express (which lacks programming as well as 3DPlot component that handles nested meshes).



Stuart





demo - maple plottool emulation.mcd
0 Kudos
