Plot the contact-point ?

lvl107
20-Turquoise

Plot the contact-point ?

Hi Everyone,
From the following :

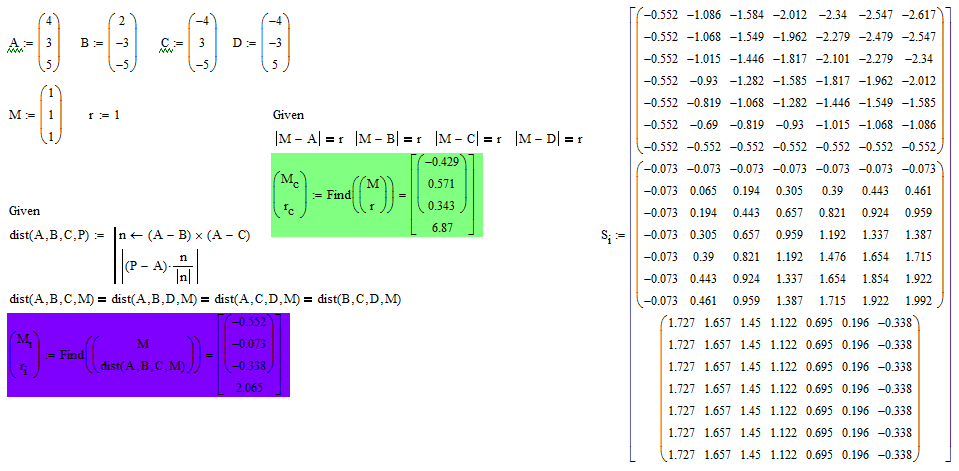

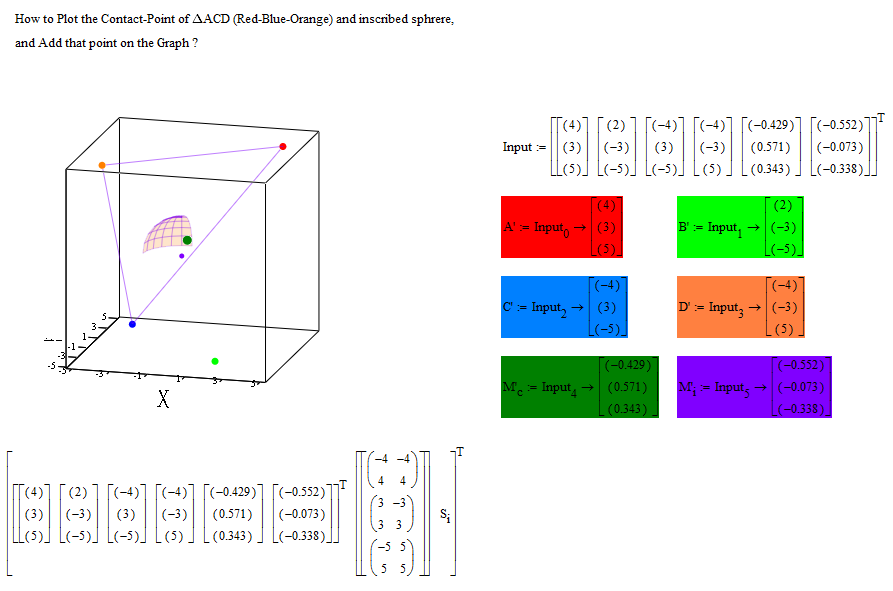

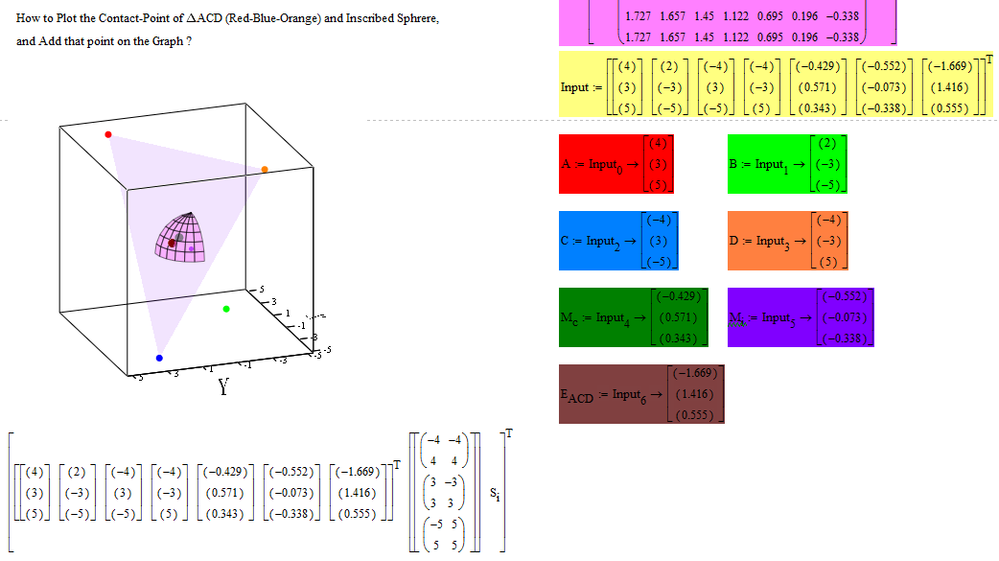

Contact-Point (1).PNGContact_Point (2).PNG

How to Plot the contact-point of ΔACD (Red-Blue-Orange) and inscribed sphrere and Add that point on the Graph ?
Thanks in advance.
Best Regards.

ACCEPTED SOLUTION

Accepted Solutions
Werner_E
25-Diamond I
(To:lvl107)

In this answer

https://community.ptc.com/t5/Mathcad/Plot-the-center-of-a-sphere-with-4-points/m-p/814821/highlight/true#M202262

I showed how to calculate all four points of contact (in German: "Berührpunkt").

To get the point you are looking for you would call "Berührpunkt(A,C,D,M.i)"

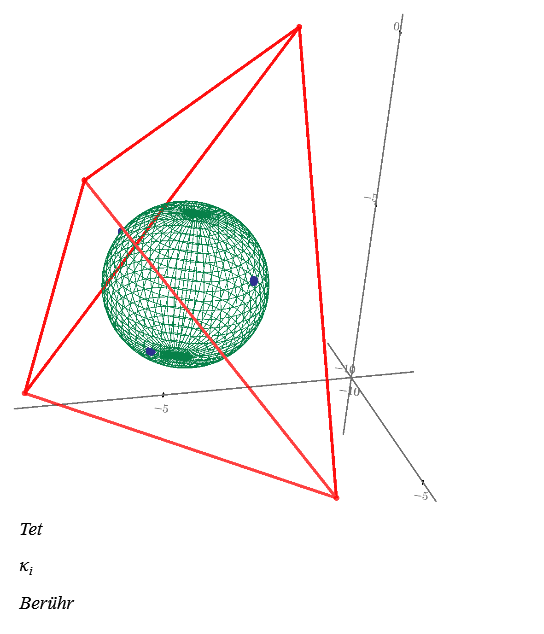

The array "Berühr" calculates all four and creates a structure which can be easily plotted.

Since I forgot to attach the worksheet at the time, I have now done so now.



View solution in original post

6 REPLIES 6
Werner_E
25-Diamond I
(To:lvl107)

In this answer

https://community.ptc.com/t5/Mathcad/Plot-the-center-of-a-sphere-with-4-points/m-p/814821/highlight/true#M202262

I showed how to calculate all four points of contact (in German: "Berührpunkt").

To get the point you are looking for you would call "Berührpunkt(A,C,D,M.i)"

The array "Berühr" calculates all four and creates a structure which can be easily plotted.

Since I forgot to attach the worksheet at the time, I have now done so now.



lvl107
20-Turquoise
(To:Werner_E)

Many Thanks for *.xmcd attached, Tokoro and Werner.

Contact-Point (2).PNG

@Werner_E , if you don't mind, I still have another related query about "create a program". Otherwise, I'll start a new Topic.

Contact-Point (3).PNG

Thanks again.

Best Regards.

lvl107
20-Turquoise
(To:lvl107)

Oh! no, Werner. I'm so sorry. You already helped me about that :

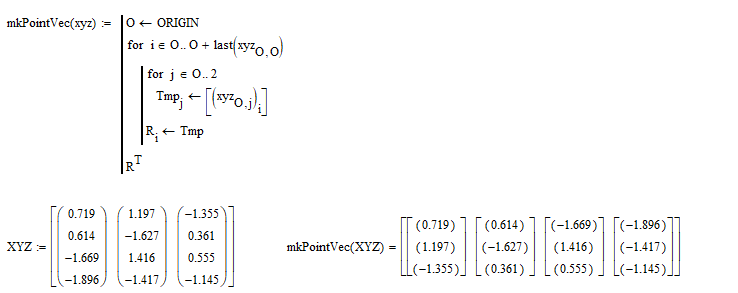

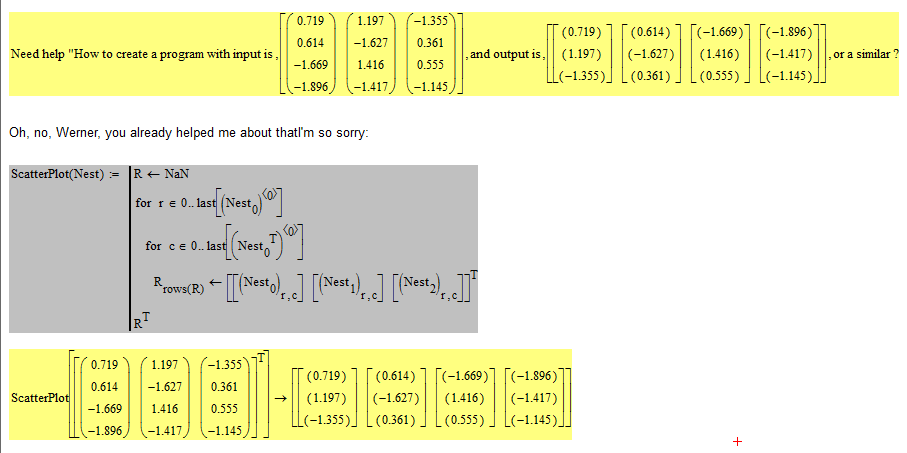

Nest To ScatterPlot.PNG

Thanks Again.

Best Regards.

Werner_E
25-Diamond I
(To:lvl107)


@lvl107 wrote:

Oh! no, Werner. I'm so sorry. You already helped me about that :

@lvl107  I could not remember, so I created the following  😉




ttokoro
20-Turquoise
(To:lvl107)

Converted to Prime 8 the Werner_E's plot. Just after the conversion, the plot shows axis line back side of tetrahedron.


Werner_E
25-Diamond I
(To:ttokoro)


@ttokoro wrote:

Converted to Prime 8

Won't help as @lvl107  is using good old MC15
