Hello. I have been having issues on adding annotations on my 3d model on a top plane. I will visibly see the dimension but once I click off of it it will disappear but still show on my detail tree. Can anyone tell me as to why it does this?



Thanks.

Best answer by SM_10081957

I received help for this issue. Whenever you create annotations on a section make sure the entities you choose are in that section. If not your annotation won't display in that section view.

3 replies

B
23-Emerald III
BenLoosli23-Emerald III
23-Emerald III
July 18, 2022

layers?

We have that issue with drawing annotations being added to invisible layers.

S
SM_1008195710-MarbleAuthor
10-Marble
July 19, 2022

How do I verify its on the correct layer?



M
Mfridman16-Pearl
16-Pearl
July 19, 2022

Hi @SM_10081957 ,

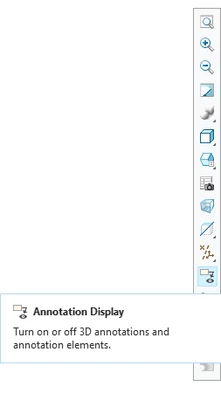

I would suspect that your annotations are turned off in the IGT (In graphics toolbar).

Once you will turn them back on, you will see all those annotations again also in your graphics area 🙂




S
SM_1008195710-MarbleAuthorAnswer
10-Marble
July 22, 2022

I received help for this issue. Whenever you create annotations on a section make sure the entities you choose are in that section. If not your annotation won't display in that section view.

    M
    Mfridman16-Pearl
    16-Pearl
    July 24, 2022

    Thanks @SM_10081957

    I just wanted to highlight one more related aspect:

    There is a model DTL setup option: "show_clipped_annotations" yes/no* which would define whether annotations would be shown/hidden in such situations when they are clipped by a section

      S
      SM_1008195710-MarbleAuthor
      10-Marble
      July 25, 2022

      Where do I find this DTL setup option?
