Boundary Blend Suggestions
- December 13, 2011
- 0 replies
- 541 views
I'm having trouble constructing a surface using existing edges. The
objective is to be able to create an enclosed volume and "solidify".

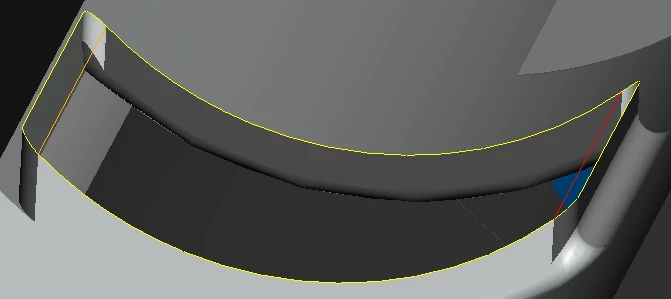

See attached picture. I want to construct a surface through the yellow
curves. The rounds in the 4 corners seem to be causing the problems. I
added the orange and red curves to try to construct the desired surface
in 3 parts then merge them, but haven't been successful.
Suggestions?
Using Wildfire 4
Andrew Kelly, P.E. | Senior Engineer | Crane Aerospace & Electronics |
+1 440 326 5555 | F: +1 440 284 1090
