coplanar constraint?

  • February 18, 2015
  • 3 replies
  • 5295 views
Proe Users,

I am a longtime Proe Users, but new to Creo 2. I am trying to create an assembly constraint that will use the center plane of a sub-assembly and keep the sub-assembly symmetrically centered between 2 faces. I see a coplanar constraint but cannot figure out how to use it, it doesn't allow me to select faces or planes??? Is this the correct constraint to do what I'm trying to accomplish? I know I can do this with a sketch and plane but I have to do several of these and wanted to make it simpler if possible.


Ryan Crisp | Senior Mechanical Engineer

[cid:image001.png@01D01AD1.5D704430]
501 Morrison Rd.
Columbus, OH 43230
(614) 337-9979
www.prioritydesigns.com
This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

3 replies

K
kimndave91-Visitor
1-Visitor
February 18, 2015

For what you are asking I think you need to create a plane that is centered between the two faces and use that as an assembly constraint reference.


x

D
dgschaefer21-Topaz II
21-Topaz II
February 18, 2015
I think you're going to need to create a plane that is in the center of the two faces and then use a coincident constraint.

The coplanar constraint applies to two edges. It forces them on the same plane, but not coincident. I hadn't heard of it before and I'm not sure how I'd use it.

From the help (I searched for "coplanar constraint"):

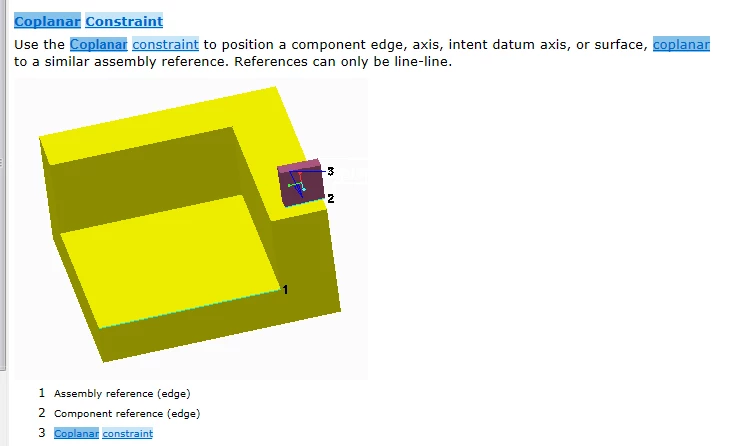

[cid:image002.png@01D04B7D.3EB440A0]


--
