Question

Drawing Line Scales do not print/export as shown in Drawing Mode

  • June 20, 2016
  • 1 reply
  • 3364 views

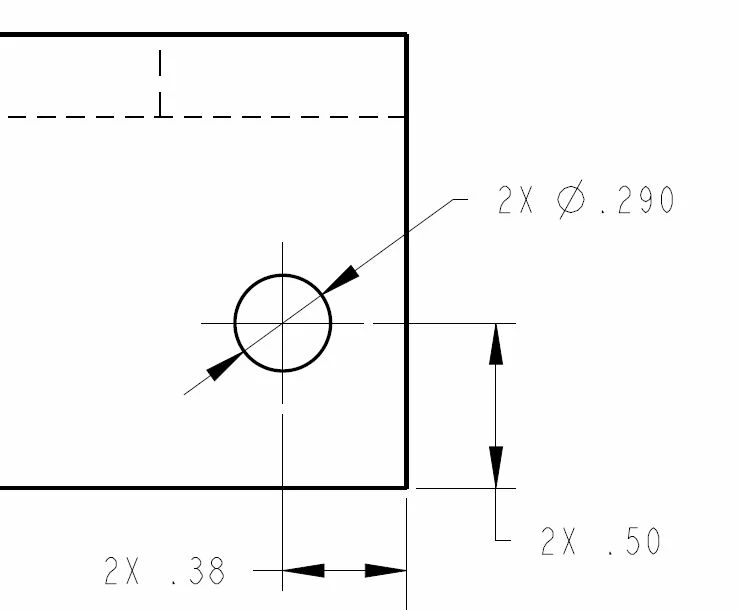

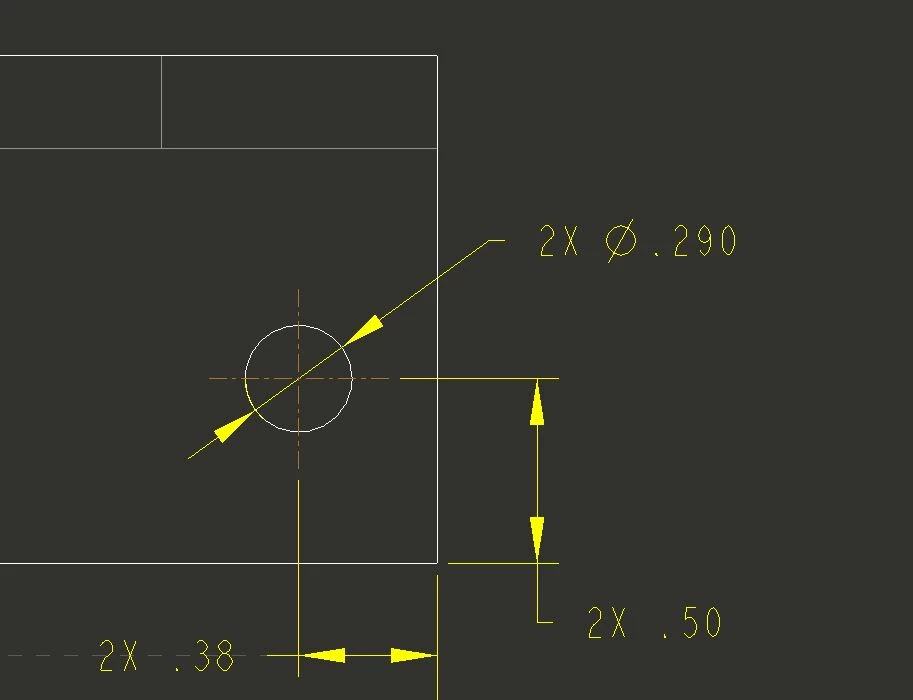

Can anyone explain what controls how Creo scales center, hidden, and phantom lines, when printing or exporting? This is a problem I've ignored longer enough -- hopefully someone can provide some insight for me.

Thanks,

Nick


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

N
ngoutis10-MarbleAuthor
10-Marble
June 20, 2016

Might help if I attach the correct image ....

M
mbonka2-Explorer
2-Explorer
June 21, 2016

Hello Nick Goutis,

l´m almost sure that right settings are hidden somewhere in PEN TABLE FILE. *.PNT extension. These file is responsible for 2D drawing to PDF printing output.

Don´t know exact enswer, but can give you some directions:

- see attached file with basic informations about *.PNT file

- see ProE help about PEN TABLE expression

- see PTC community for PEN TABLE expression

Milan

M
mbonka2-Explorer
2-Explorer
June 22, 2016

Have found some more simplier PDF "manual" about *.PNT file.

Please Refer:Suggested Technique for Creating Table.pnt files and Setting Default Pens

Hope it can explain many question...

Regards

Milan
