Gtol, I can't add 2 Gtol on one datum

  • October 22, 2014
  • 1 reply
  • 1474 views

I have 2 reference planes on my product.

Each plane has a flatness demand of 0.1 mm and to each other these planes need to be parallel within 0.2 mm.

I can add only one Gtol to a datum.

If I try to add the second Gtol, the first one is replaced.

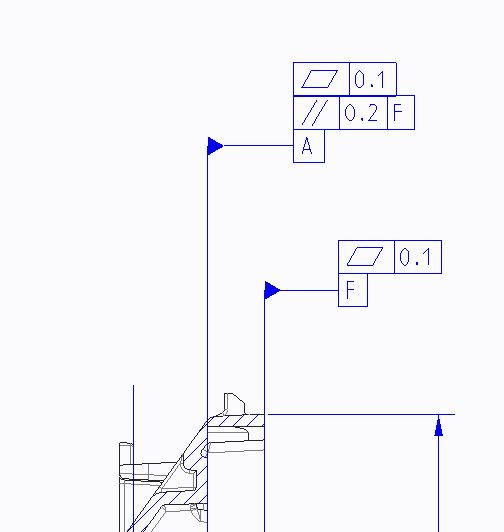

How can I add 2 Gtol on one datum as in below picture?

Now the second Gtol is added on the drawing as a free note.

We are using Creo 2.0



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

D
dpasholk1-Visitor
1-Visitor
April 21, 2015

Hi

FCF (feature control frames) do not attach to the datum tag. The datum tag is not called out for flatness, but the datum tag can be attached to the FCF.

Try attaching the FCF to a surface or edge then place the datum tag on the FCF. Then you should be able to combine the FCF's.
