Question

How i can create two different views in same drawing in Creo drawing Module.

  • December 27, 2014
  • 1 reply
  • 3662 views

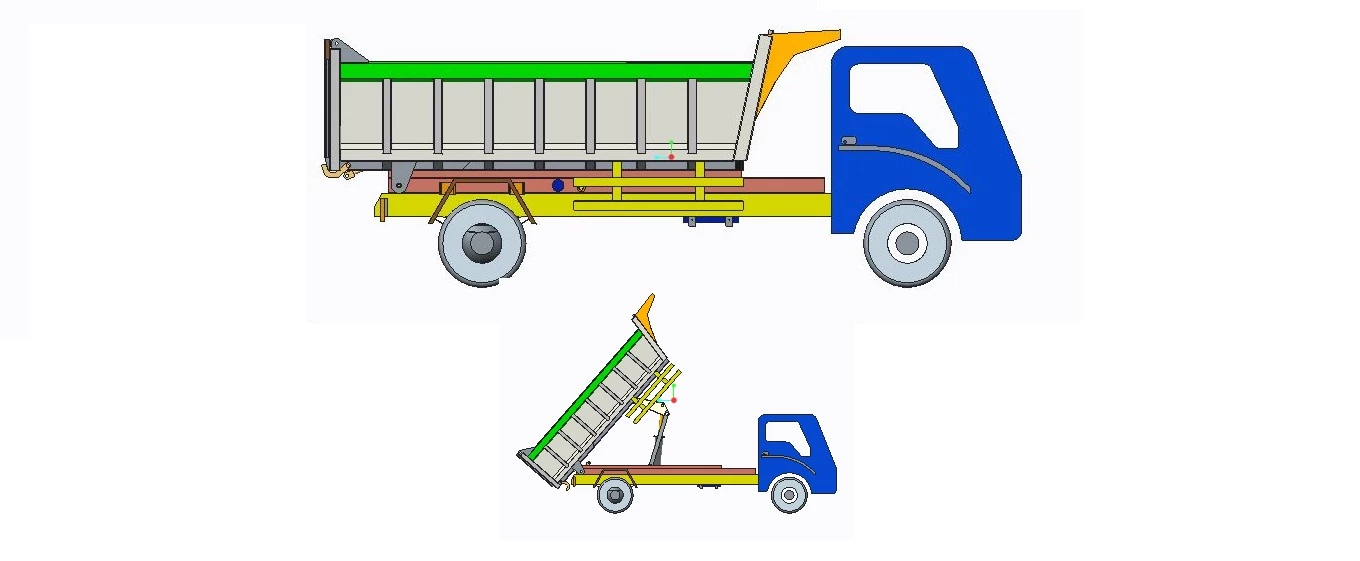

How i can create these type of views in Creo drawing Module.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

M
mmuhammadnazir1-VisitorAuthor
1-Visitor
December 27, 2014

How i can create two views in same drawing in Creo drawing Module.

T
TomD.inPDX17-Peridot
17-Peridot
December 27, 2014

You can add multiple models in drawings. Use the "add model" dialog. One model will be active. You can change the active model in the model tree. The default drawing scale applies to each model.

Typically, your variation will be determined with family tables. Each family table instance can be added to the drawing as a different model.
