How to "untrimm" a surface

Forum|Forum|13 years ago
March 19, 2013
6 replies
4636 views

Hello Community,

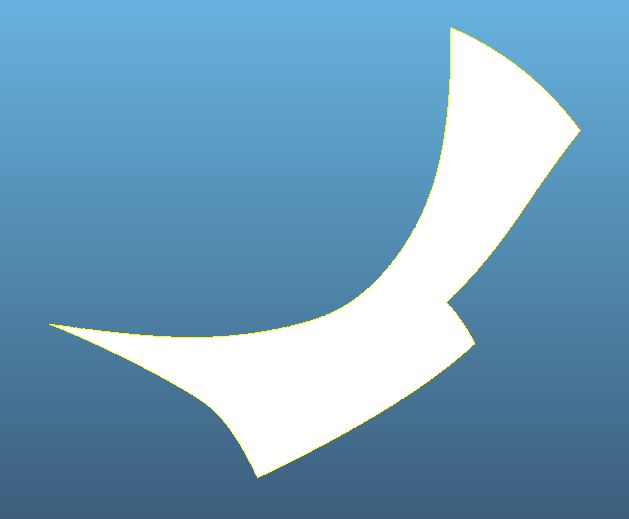

i need to untrimm some surfaces. I try the extrapolate function in the import data doctor

and get a good preview of the untrimmed surface but i can not keep it.

Is there a trick to remove a trimcurve from a surface, maybe inside the step file?

I use Creo/Elements/Pro with ISDX.

Thx for any help,

Michael

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1_prt0001-stp.zip

Data Exchange

Best answer by Constantin

This can be done with that used to be called "snap shot surface" in ScanTools.
You find it under Insert/ Independent Geometry/ Geometry/ Surface/ From Surface
This will create a new untrimmed but non dependent (well, you just inserted an independent geometry) surface. This works on solid surfaces also.

P.S.
Your first approach works as well BTW. Inside the IDD (Import Data Doctor), switch the selection filter to Edges, select one of the edges of the surface and hit delete... that's it.

T

TomD.inPDX

17-Peridot

You could try a boundary blend with tangency. Maybe use some 3D datum curves as guides to extend the edges you need. Personally, I might go back to the original designer and ask for the "missing data"

C

Constantin

Answer

15-Moonstone

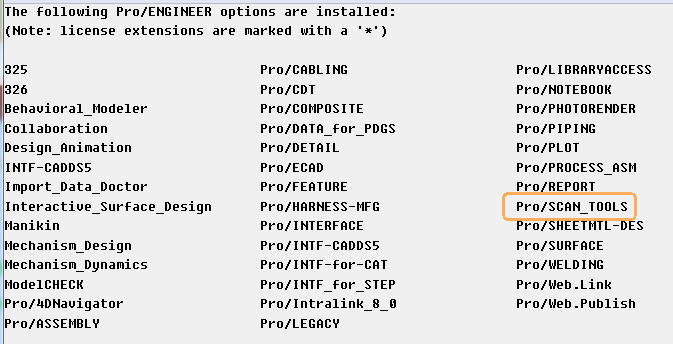

This can be done with that used to be called "snap shot surface" in ScanTools.
You find it under Insert/ Independent Geometry/ Geometry/ Surface/ From Surface

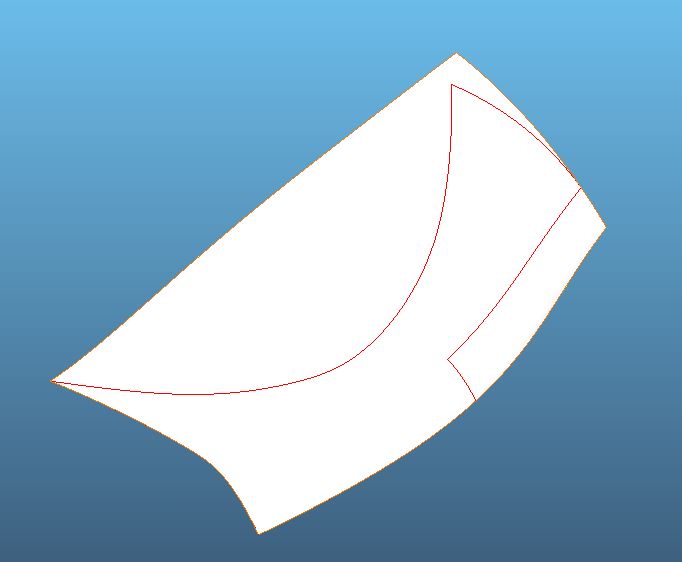

This will create a new untrimmed but non dependent (well, you just inserted an independent geometry) surface. This works on solid surfaces also.

P.S.
Your first approach works as well BTW. Inside the IDD (Import Data Doctor), switch the selection filter to Edges, select one of the edges of the surface and hit delete... that's it.

T

TomD.inPDX

17-Peridot

That recommendation is worthy of a video:

Video Link : 3835

Patriot_1776

22-Sapphire II

Wow, that's kinda cool. I still think the "Data doctor" s#cks. I miss the automatic "zip gaps". also, SW has a much better automatic, and manual method for fixing imports. Honestly, that's all I use it for.
