Indented BOM in Drawing

  • May 14, 2014
  • 4 replies
  • 4755 views

Hello Everyone,

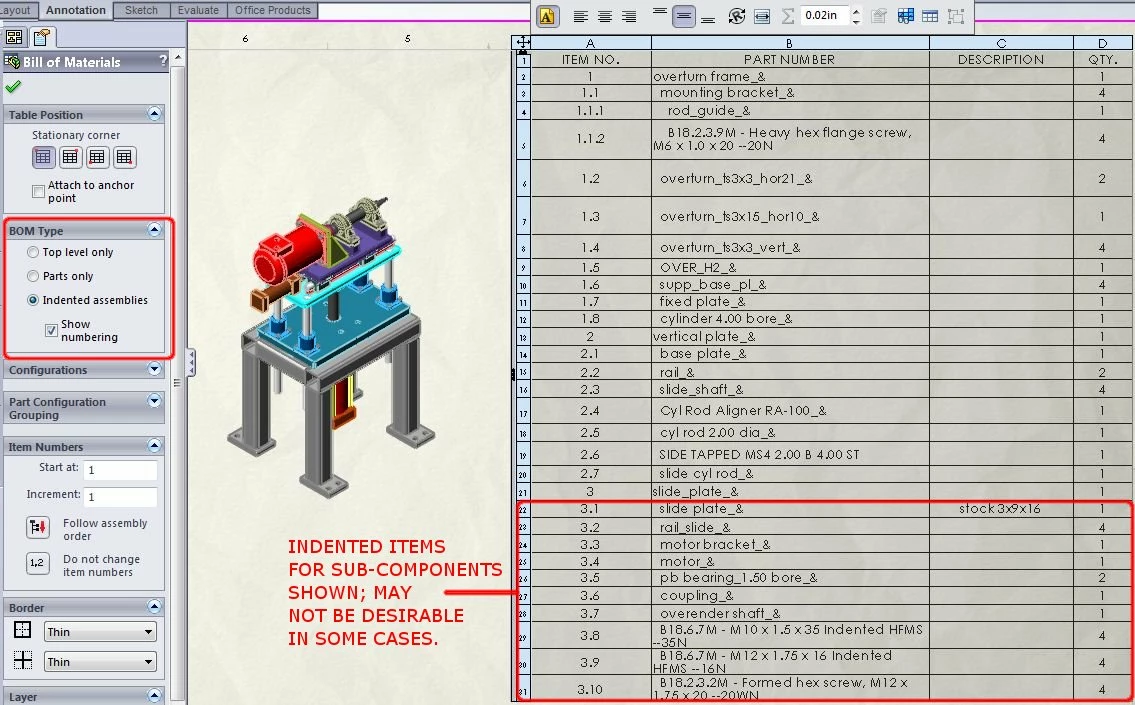

I am unable to create indented BOM in same as like Solidworks drawing (I have attached a Image). Please anyone suggest me, how can I get over this problem.

I am able to place indented (Sub-Assembly parts) in BOM but its getting continuous Index numbering 1, 2, 3....

I need Index numbers as follows

1,

1.1,

1.2,

2,

3,

3.1,

3.2 ...

Thanks and Regards,

Naveen Kumar Gongu
