ISO Metric setup

  • February 13, 2012
  • 3 replies
  • 7192 views

Since I bought Pro/E Wildfire 4 four years ago, I have still not made it working completely with the metric system. I.e when I am creating a drawing my texts are really small and a lot of other problems.

Why is it that hard to find a standard setup for the ISO system including line thickness and text sizes.

Anyone can help me?

At the moment I am using Creo 1 and it is the same problem.

The swedish PLATINUM PARTNER ECONOCAP can't after about four years of service contract.

When I used Inventor before it was really easy. Maybe it is time to change back???

Thanks in advance.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

3 replies

K
KshetrabasiMaha1-Visitor
1-Visitor
February 13, 2012

Hi

Pro-e gives more flexibility than other softwares (Related to configuration)

For example

Font size in drawing can be easily changed in Drawing option(.dtl file)

After you change your font size save the configuration at specific location

Give the path of the file in your config.pro

To go to drawing options

Go to

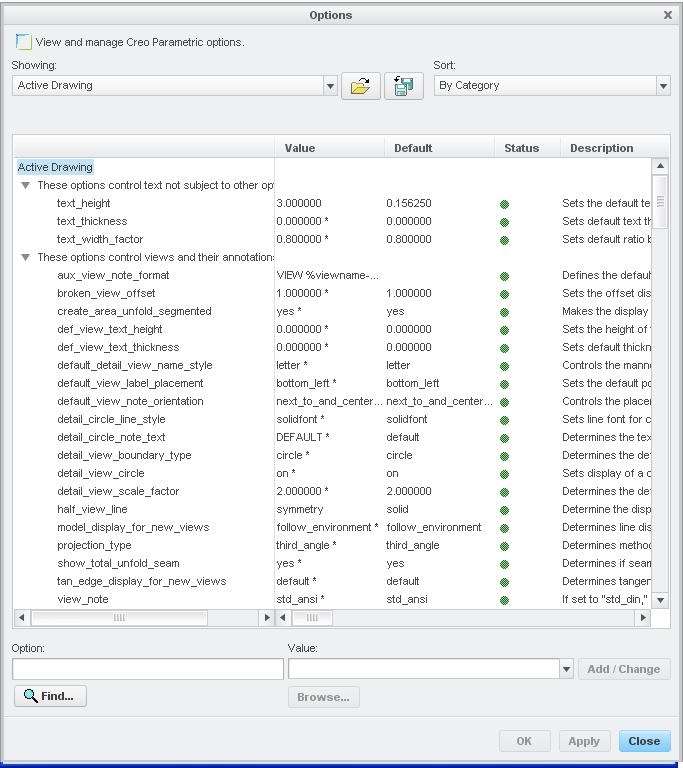

File>Prepare>Drawing Properties
