Question

Modelling hose, cable, wire etc without cabling extension

  • December 13, 2016
  • 6 replies
  • 9361 views

Hi all

Looking for suggestions on different ways to model 3d hoses, cables, wires etc if not using the cable/wiring extension.  I know about intersecting 3d curves etc but just wanted to know if anyone knew a nice tutorial video etc.  Watched one by a guy called Doug of EAC on youtube which was very useful.  Our scenarios is usually to connect between 2 parts which may or may not be in line....in-line is easy with a sweep, but I want to know more about creating and manipulating a 3d sweep, curve etc.

Thanks in advance

Stu

6 replies

D
drawlins1-Visitor
1-Visitor
December 13, 2016

Will a curve through points satisfy your needs?  I've used that a couple of times and you can make some pretty cool 3D curves.

S
saspinall1-VisitorAuthor
1-Visitor
December 14, 2016

Thanks for the reply Don, yes it would....I'm just after suggestions really of how everyone models hoses/wires/pipes etc if they haven't got the correct ptc extension.

Stu

B
BHOoi16-Pearl
16-Pearl
December 14, 2016

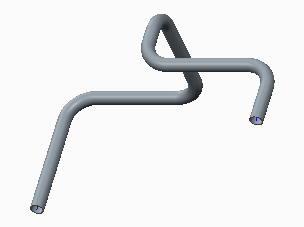

I use projected curves to construct wire path all the time, as in the example below:


    S
    saspinall1-VisitorAuthor
    1-Visitor
    December 14, 2016

    Thanks BH, would be interested to find out how you do these, look very nice indeed.

    Stu

    B
    BHOoi16-Pearl
    16-Pearl
    December 15, 2016

    Thanks. Nothing secretive/confidential and I normally love sharing/exchanging  modeling skill. Attached is the raw file in creo 2 for your reference. Hope this helps.

    Patriot_1776
    Patriot_177622-Sapphire II
    22-Sapphire II
    December 14, 2016

    You can do 2 curves in 2 different planes, then do an "Intersect" and it will make a 3D curve.  You need to be careful that you end up with the curve you want instead of something weird.

    S
    saspinall1-VisitorAuthor
    1-Visitor
    December 14, 2016

    Thanks frank...yes have used these when construction spring ends, slightly tricky.....Im currently doing a cable routing through 3D space and have found that activating the part while in assembly mode, then adding points at the centres of where the core is to route through, then using datum curve through points, making the ends normal to certain faces seems to give reasonably looking answers.

    Stu

      D
      DG_8950681-Visitor
      1-Visitor
      December 14, 2016

      Hi Stu

      as already noted points, curves and sweeps will harvest the best control and you will be able to measure the length.

      ...but...

      have you looked at the good old "pipe" feature?

      I sometimes use it to get a rough idea where the best route may be.

      it is buried in the list under "commands not in the ribbon" drop down



      as with all thing ptc you may scratch your head for a minute or two

      ....but...with practice you can create a hunk of pipe/wire quick.

      and drag the points looking for the sweet spot.

      I always need the length so it gets suppressed and replaced it with a curve and a sweep.

      see the attached creo2 model

      B
      bbrejcha15-Moonstone
      15-Moonstone
      December 15, 2016

      better to use the appropriate module.    I've seen companies waste hundreds of hours using projected curves, ISDX, curve thru points, and all the time thinking they are saving money. The truth is your pay and time can more than exceed the cost of a 3k module.    I like the twisted wires above tho

      In my cabling class i share a bunch of tricks to make service loops & twisted pairs.

      Bart Brejcha

      Design-engine.com

      Patriot_1776
      Patriot_177622-Sapphire II
      22-Sapphire II
      December 15, 2016

      ....except we didn't do routings often enough for the companies to want to spend the $$.  It was a fairly rare thing, and we just dealt with it.

      Personally, I LIKE doing it manually instead, it's more challenging and you learn more.  But if you are going to do a lot of it, get and learn the module.

        S
        saspinall1-VisitorAuthor
        1-Visitor
        December 15, 2016

        Thanks to all who have contributed, some useful tips in there.....as a company, we rarely route cables into awkward places, as required in my current assembly model.  I used the Activate component in the assembly, them created points at various positions in the assembly, then created a datum curve through these points to generate the trajectory for a sweep.  I like the facility of being able to change the datum curve between points from being straight or a spline, and setting the end points to be normal to a defined surface.

        I've downloaded both models which were attached to replies here, and I will look at them in due course.  Love the both.

        Stu

          P
          ptc-51976631-Visitor
          1-Visitor
          August 25, 2018

          Hi,



          Maybe this could be exactly what you are looking for. check out the below link video here your question is answered

          https://youtu.be/xlgJDlt6G24

          you are welcome!
