Question

sheetmetal hem? Where did it go

  • October 8, 2013
  • 6 replies
  • 6080 views
I don't use sheetmetal mode often, I'm trying to add a hem to a part, and I don't find anything in the creo 2 update training on it, search for hem in Creo turns up nothing. What happened to this functionality?

David Haigh
Phone: 925-424-3931
Fax: 925-423-7496
Lawrence Livermore National Lab
7000 East Ave, L-362
Livermore, CA 94550


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

6 replies

D
davehaigh13-AquamarineAuthor
13-Aquamarine
October 8, 2013
Help did finally turn up this. Still don't know what buttons to push to get there.

About Standard Flange Wall Shapes
There are two types of standard flange wall shapes as shown below (the shape is in yellow):

*

Hem-Open, Flushed, Duck, C, and Z



*

Other standard shapes-I, Arc, and S

Open

Flushed

Duck

C

Z

[Image]

[Image]

[Image]

[Image]

[Image]

Hem<">http://localhost:60200/pma/sheetmetaldesign/Your_Design/About_Standard_Flange_Wall_Shapes.html?queryId=14199f7d2b1> shapes
I

Arc

S

[Image]

[Image]

[Image]

Other standard shapes
Keep in mind the following when using a standard flange wall shape:

*

You cannot change the material thickness direction for an Open, Flushed, Duck, C, or Z flange.



*

The bend radius value and material thickness direction are only applied to a shape that is not tangent to the attachment wall.



*

You can apply rip relief only to a flange with a flush shape.



*

Stretch relief is not available for a duck-shaped flange.




David Haigh
D
davehaigh13-AquamarineAuthor
13-Aquamarine
October 8, 2013
Help did finally turn up this. Still don't know what buttons to push to get there.

About Standard Flange Wall Shapes
There are two types of standard flange wall shapes as shown below (the shape is in yellow):

*

Hem-Open, Flushed, Duck, C, and Z



*

Other standard shapes-I, Arc, and S

Open

Flushed

Duck

C

Z

[Image]

[Image]

[Image]

[Image]

[Image]

Hem<">http://localhost:60200/pma/sheetmetaldesign/Your_Design/About_Standard_Flange_Wall_Shapes.html?queryId=14199f7d2b1> shapes
I

Arc

S

[Image]

[Image]

[Image]

Other standard shapes
Keep in mind the following when using a standard flange wall shape:

*

You cannot change the material thickness direction for an Open, Flushed, Duck, C, or Z flange.



*

The bend radius value and material thickness direction are only applied to a shape that is not tangent to the attachment wall.



*

You can apply rip relief only to a flange with a flush shape.



*

Stretch relief is not available for a duck-shaped flange.




David Haigh
J
Jim.Tierney1-Visitor
1-Visitor
October 8, 2013
Flange
[cid:image009.png@01CEC444.4222CC00]

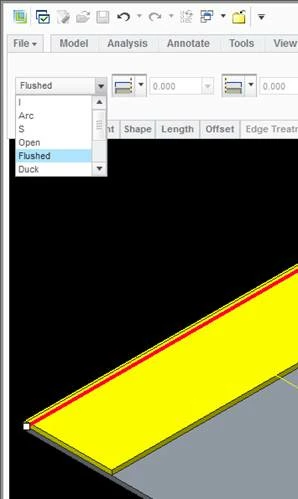

Then select the edge to attach and select the shape

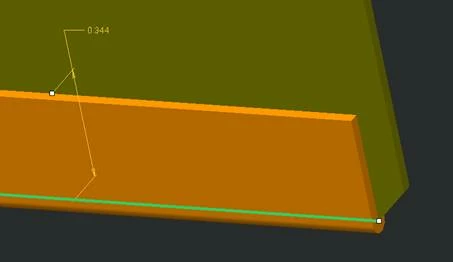

[cid:image010.png@01CEC444.4222CC00]

[cid:image001.jpg@01CEC444.4301BA50]
J
jnelson14-Alexandrite
14-Alexandrite
October 8, 2013
David
This is an option under the Flange Wall Tool

[cid:image002.png@01CEC44F.53F46870]

[cid:image007.jpg@01CEC44F.53F46870]




Joel Nelson
Sheetmetal Technical Committee Chair
[PTC_USER]




A
Anonymous
October 8, 2013
David,

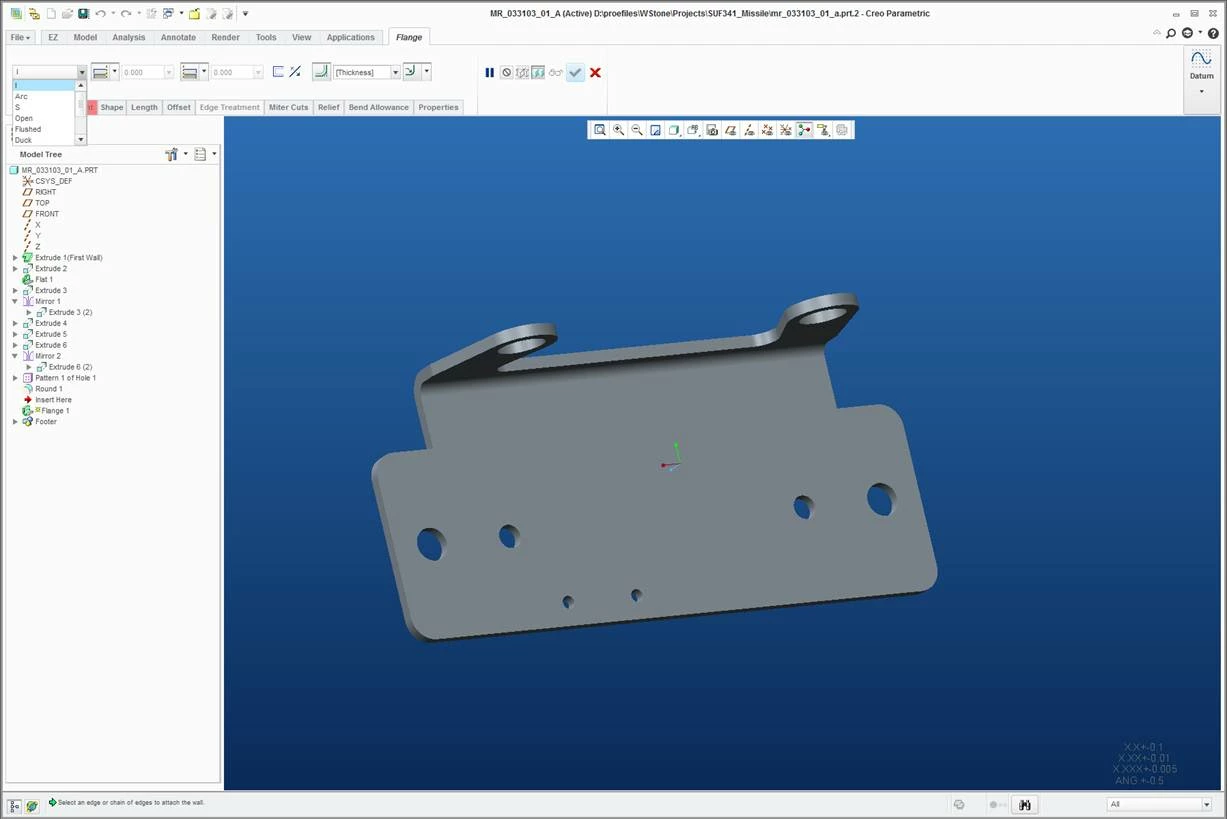

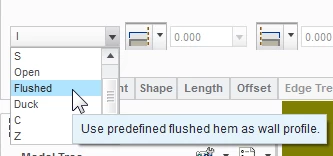

The tools listed below can be found under the "FLANGE" button on the Shapes section of the ribbon. Once selected, down arrow on the "I" selection box



[cid:image001.jpg@01CEC447.63A3E2D0]
P
pfariello1-Visitor
1-Visitor
October 9, 2013
Yes, where did this go to, cant find it either.........

Patrick Fariello
CommScope
