Unable to make a gear

  • March 28, 2015
  • 1 reply
  • 2153 views

I've attached a picture:

(consider opening on another tab to make it easier to see - middle button on many browsers)

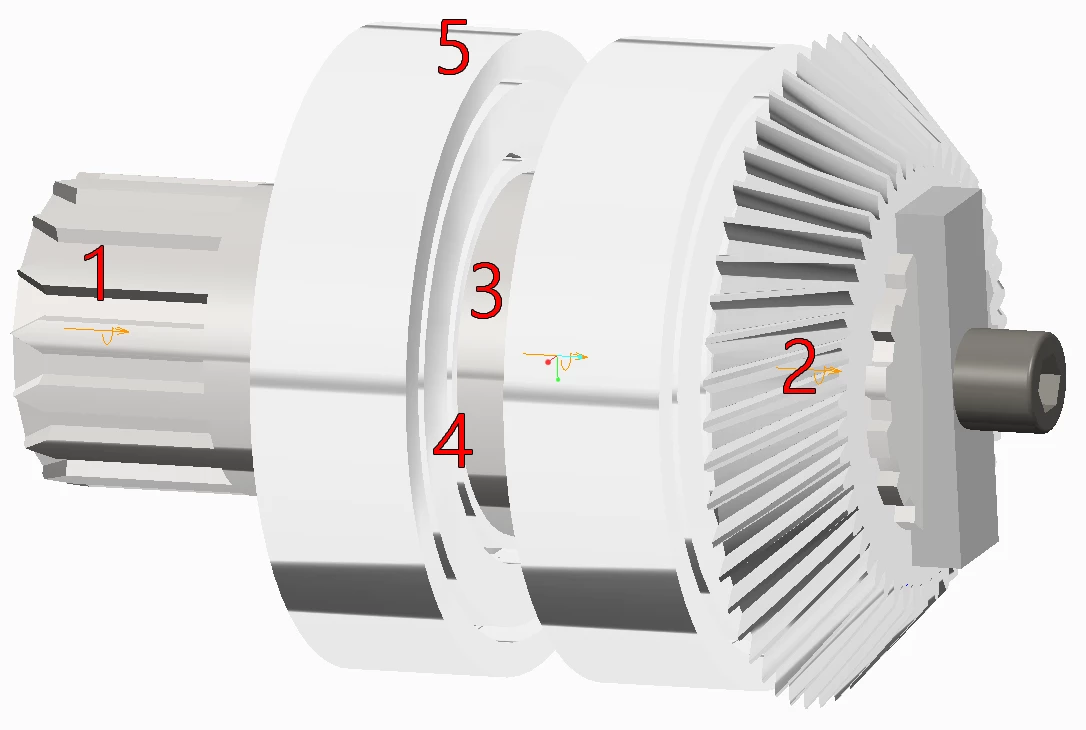

1 - An axle/arbor (Pinned coincident to a datum axis - free on other directions)

2 - A gear (Well attached to the Axle, where it IS to be)

3 - Washer/Separator (attached to the gear and the arbor) [there's another one behind the gear]

4 - Inner runner of a ball bearing (Attached to the Washer/Separators (3))

5 - Outer runner of a ball bearing (pinned and aligned with the inner runner) - This part is important, because when I attach these parts to another assembly, the outer runner is the interface

More clarifications:

If I restrain the movement of the outer runners, I can still move (spin) the gear (which also moves the axle and the inner runners)

Which is the behavior I want

Why Creo disallows converting the gear onto a gear (when I attach these parts to another assembly containing another gear) ?

(Unfortunately, the orange circled arrow belongs to the bearing, not the gear)


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

T
TomD.inPDX17-Peridot
17-Peridot
March 30, 2015

I am not sure I understand the desired results. However, you should be able to use the pin constraint at higher levels but you just have to be careful of making sure your ground elements remain... or worse, that new ground elements are not being created. You can turn this on in the model/mechanism tree.

Quite often I need to create, or create as a matter of convenience a dummy part only to manage the assembly and motion. I find that mechanism and the logic of your device do not follow the same logic. There is also something going on when axes are not oriented as the software expects. I have trouble with simulated rack and pinion constraints where the axes are parallel for instance. I am only trying to achieve a rotation to linear displacement, but the software wants specific orientations as well. I only mention this in case a spur gear setup does not recognize bevels, for instance.

In general, I get everything I want out of mechanism but rarely the 1st time. I create extra servo motors and dummy parts if the system won't cooperate. Many times the motion I get is not even close to logical to what I thought I set up. Sometimes, elements get stuck where I have to delete the entire constraint set to "unstick" the problem. Point is, what seems to be a limitation isn't necessarily the real problem.

Also, don't forget you can add multiple constraint sets. I think you may have done this, but this helps by not over constraining a primary constraint.

    L
    lsilva1-VisitorAuthor
    1-Visitor
    March 30, 2015

    A lot to cover here !

    If I'm interpretating correctly your description, you've stumbled on bugs !

    I think me too.

    I did put many constraints, following the real world logic.

    And it works like a charm. Using the Drag component.

    There IS a structure I could call dummy.

    I did "delete entire constraints" many times, actually.

    Create more than one set when convenient. Probably the case here.

    If you find yourself free time, would you (or anyone) mind opening my assembly (turret.asm).

    (And don't forget to right click and activate the XSEC0001 section - the last feature of the model tree)

    T
    TomD.inPDX17-Peridot
    17-Peridot
    March 31, 2015

    I can open it later this week. I don't have the right computer with me.

    I did learn that pistons and pins act completely different. So yes, a lot of this is about knowing what the software is really thinking rather than the description.
