Can you guys help verify whether or not Ihave gone crazy?

In Creo2 I am trying to measuredistance from one vertex to another vertex of asame planar spline.In other words, the two ends of a squiggly curve.

The message I get back is "This measurement cannot be performed for the given set of references" Huh?

I can get a measurement from one end verex to the CSYS but not from end to end. My curve is located and dimensioned with Strong dims so it's located in space.

weird stuff this morning.

Show previous replies

M

MikeBrattoli

12-Amethyst

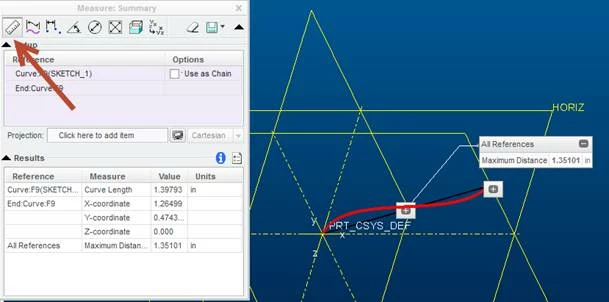

In Creo 2.0, pick the Measure Summary option, select the curve, then using the Ctrl Key pick one end vertex. You will get the X, Y, znd Z coordinates of the vertex, the Curve Length, and the Maximum Distance all in once screen. 3 picks including the selection of the Summary icon

If I were to pick the other vertex I still get the overall Curve Length and the Maximum Distance measurement but my X, Y, Z coordinates change to the other vertex location values

[cid:image008.jpg@01CE8390.FD9A7310]

Mike Brattoli
Moen Incorporated
Global Product Development Process Management
Administrator - PLM
25300 Al Moen Drive
North Olmsted, OH 44070

D

DeanLong

Author

1-Visitor

Mathew,

The way I was pickingto measure the distancemade it require more clicks than is needed demonstrated by Mike's clarification. Operator error.It is really about the same number of clicks as Wildfire releases to measure things.

Also, don't be scared of moving to Creo. All in all...I see some good things that have evolved into Creo2. Some of the GUI "logic" is still a bit odd to me. But I realize it made sense to someone and that means logic was used. I just need to get in tune with it. The white background is something I cannot live with as it hurts my eyes. Also the dull gray solid model default is just plain depressing. I will be changing that as well.

Change is okay.

Thanks Mike for the ruling.

M

mathew.palazola

1-Visitor

this sounds exactly correct.

you should win a Noble Prize.

M

MikeBrattoli

12-Amethyst

My pleasure Dean

I too agree with your observations about Creo. We went from Wildfire 5 to Creo 2 and I did a lot of research with our users about what they liked and disliked about the new UI, background colors, etc.... I definitely got an ear full but I also heard the message that they really did like where PTC was going with the solution. I had to customize some things (the vast majority wanted the old gradient blue background so that's what we have by default - if someone wants white, green, or any other color they can change it), customize some of the ribbon menus, and of course, change a LOT of global mapkeys :)!!!

I teach Creo at the college level (started 17 years ago with release 15 of Pro/E) as well as support it here at Moen. It's definitely not perfect (why the command search isn't all encompassing for all areas of the application I really, really don't understand for example) but having been to Needham and being on the technical committees for many years I know they are putting a lot of thought into what they are doing. I don't always agree with the thought processes - sort of like dealing with my users 🙂

Mike Brattoli
Moen Incorporated
Global Product Development Process Management
Administrator - PLM
25300 Al Moen Drive
North Olmsted, OH 44070

D

dgschaefer

21-Topaz II

Mathew,

The measure tool is actually one of the biggest improvements in Creo. Click measure (summary), click an item and Creo will tell you pretty much everything it knows about it. Hold control and pick another, and it'll tell you all it knows about both together. If one is a line, planar surface or cylinder you can choose if to use it as an line, plane or center. A lot of info in a few clicks.

Back in WF3 when PTC made a mess of the measure tool, a lot of us told PTC to look at SW's measure tool. They did, and delivered a tool that's far superior. In SW I now wish it had the Creo capabilities.

This is the first odd scenario I've found with it, and if you use Mike's method (or the method I posted earlier) it's not bad at all. What I'm saying is don't be afraid of Creo based on what you read here, it's overall an improvement over WF5 and earlier.

--
