Hello!



I created a part window using the code:

      Model tryModel = curSession.CreatePart ("Testing1");
      tryModel.Display ();

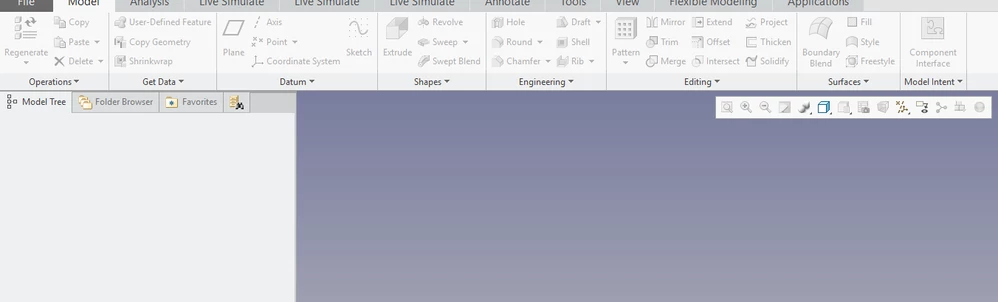

Here's what happened:


Then to create the tree elements I need to access the model in the current session:

=========================================================================

Session session = pfcSession.GetCurrentSession ();

Model currModel = session.GetCurrentModel();

MessageDialogOptions msgOpts = pfcUI.MessageDialogOptions_Create();
MessageButtons buttons = MessageButtons.create();
buttons.append(MessageButton.MESSAGE_BUTTON_OK);
msgOpts.SetButtons(buttons);
msgOpts.SetMessageDialogType(MessageDialogType.MESSAGE_WARNING);
msgOpts.SetDialogLabel("OTK Sweep Feature Create ERROR");

if(currModel == null)
       {
              session.UIShowMessageDialog("Model must be in current Session",msgOpts);
              throw new Exception("Method: pfcSession::GetCurrentModel \nMsg: otkSweepCreate");
       }

=========================================================================

The condition is not met and a warning appears:

How to create a model in a tree?
Has anyone built models using OTK Java?
Help me please.



Best Regards!

Best answer by VladiSlav

I found a mistake.
Everything works now.
My code is:

public Extrude()
	{
	}
public void OnCommand() throws jxthrowable
	{
	Session session = pfcSession.GetCurrentSession ();
	Model currModel = session.GetCurrentModel();
	if(currModel == null)
		createPart();
	else
		modelBuild();
	}
public void createPart() throws jxthrowable {
 	try
	{
	Session curSession = pfcSession.GetCurrentSessionWithCompatibility(CreoCompatibility.C4Compatible);
	String modelLocation = "......";
	String model_name = ".......";
	ModelDescriptor desc = null;
	curSession.GetCurrentWindow().Activate();
	desc = pfcModel.ModelDescriptor_CreateFromFileName(model_name);
	desc.SetPath (modelLocation);
	Model template = curSession.RetrieveModelWithOpts(desc, pfcSession.RetrieveModelOptions_Create());
	Model newPart = template.CopyAndRetrieve("Test", null);
	Window newWindow = curSession.CreateModelWindow(newPart);
	newPart.Display();
	curSession.SetCurrentWindow(newWindow);
	newWindow.Activate();
	template.Erase();
	} catch (Exception e)
	{
	System.out.println("1: " + e);
	Session session = pfcSession.GetCurrentSessionWithCompatibility(CreoCompatibility.C4Compatible);
	Model currModel = session.GetModel("......", ModelType.MDL_PART);
	currModel.Erase();
	}
	}
public void modelBuild() throws jxthrowable {
	try {
	int quan;
	String name;
	String allname = "";
	Session session = pfcSession.GetCurrentSession ();
	WSession ses = (WSession)session;
	Model model = ses.GetCurrentModel();
	Solid solid = (Solid)model;
	ModelItems items = solid.ListItems(ModelItemType.ITEM_FEATURE);
		for (int j = 0; j < items.getarraysize(); j++) {
			name = ((Feature)items.get(j)).GetName();
			quan = ((Feature)items.get(j)).ListSubItems(ModelItemType.ITEM_SURFACE).getarraysize();
			allname = allname + name + ": " + quan + "\n";
		}
	//session.UIShowMessageDialog(allname, null);
	Surface plane = (Surface)((Feature)items.get(3)).ListSubItems(ModelItemType.ITEM_SURFACE).get(0);
	Surface plane1 = (Surface)((Feature)items.get(2)).ListSubItems(ModelItemType.ITEM_SURFACE).get(0);
	Selection dirSels1 = pfcSelect.CreateModelItemSelection(plane, null);
	Selection dirSels2 = pfcSelect.CreateModelItemSelection(plane1, null);

	Elements elements = Elements.create();
	//PRO_E_FEATURE_TREE
	Element elem_0_0 = wfcElementTree.Element_Create(wfcElemIds.PRO_E_FEATURE_TREE,null,0);
	elements.append(elem_0_0);
	//PRO_E_STD_FEATURE_NAME
	Element elem_1_0 = wfcElementTree.Element_Create(wfcElemIds.PRO_E_STD_FEATURE_NAME, pfcArgument.CreateStringArgValue("My_extrude"),1);
	elements.append(elem_1_0);
	//PRO_E_FEATURE_FORM
	Element elem_1_2 = wfcElementTree.Element_Create(wfcElemIds.PRO_E_FEATURE_FORM, pfcArgument.CreateIntArgValue(1),1);
	elements.append(elem_1_2);
	//PRO_E_FEAT_FORM_IS_THIN
	Element elem_1_3 = wfcElementTree.Element_Create(wfcElemIds.PRO_E_FEAT_FORM_IS_THIN, pfcArgument.CreateIntArgValue(0),1);
	elements.append(elem_1_3);
	//PRO_E_EXT_SURF_CUT_SOLID_TYPE
	Element elem_1_4 = wfcElementTree.Element_Create(wfcElemIds.PRO_E_EXT_SURF_CUT_SOLID_TYPE, pfcArgument.CreateIntArgValue(917),1);
	elements.append(elem_1_4);
	//PRO_E_REMOVE_MATERIAL
	Element elem_1_5 = wfcElementTree.Element_Create(wfcElemIds.PRO_E_REMOVE_MATERIAL, pfcArgument.CreateIntArgValue(-1),1);
	elements.append(elem_1_5);
	//PRO_E_STD_EXT_DEPTH
	Element elem_1_6 = wfcElementTree.Element_Create(wfcElemIds.PRO_E_STD_EXT_DEPTH, null,1);
	elements.append(elem_1_6);
	//PRO_E_EXT_DEPTH_FROM
	Element elem_2_0 = wfcElementTree.Element_Create(wfcElemIds.PRO_E_EXT_DEPTH_FROM, null,2);
	elements.append(elem_2_0);
	//PRO_E_EXT_DEPTH_FROM_TYPE
	Element elem_3_0 = wfcElementTree.Element_Create(wfcElemIds.PRO_E_EXT_DEPTH_FROM_TYPE, pfcArgument.CreateIntArgValue(128),3);
	elements.append(elem_3_0);
	//PRO_E_EXT_DEPTH_FROM_VALUE
	Element elem_3_1 = wfcElementTree.Element_Create(wfcElemIds.PRO_E_EXT_DEPTH_FROM_VALUE, pfcArgument.CreateDoubleArgValue(100),3);
	elements.append(elem_3_1);
	//PRO_E_EXT_DEPTH_TO
	Element elem_2_1 = wfcElementTree.Element_Create(wfcElemIds.PRO_E_EXT_DEPTH_TO, null,2);
	elements.append(elem_2_1);
	//PRO_E_EXT_DEPTH_TO_TYPE
	Element elem_3_2 = wfcElementTree.Element_Create(wfcElemIds.PRO_E_EXT_DEPTH_TO_TYPE, pfcArgument.CreateIntArgValue(268435456),3);
	elements.append(elem_3_2);
	//PRO_E_STD_SECTION
	Element elem_1_7 = wfcElementTree.Element_Create(wfcElemIds.PRO_E_STD_SECTION, null,1);
	elements.append(elem_1_7);
	//PRO_E_STD_SEC_SETUP_PLANE
	Element elem_2_2 = wfcElementTree.Element_Create(wfcElemIds.PRO_E_STD_SEC_SETUP_PLANE, null,2);
	elements.append(elem_2_2);
	//PRO_E_STD_SEC_PLANE
	Element elem_3_3 = wfcElementTree.Element_Create(wfcElemIds.PRO_E_STD_SEC_PLANE, pfcArgument.CreateSelectionArgValue(dirSels1),3);
	elements.append(elem_3_3);
	//PRO_E_STD_SEC_PLANE_VIEW_DIR
	Element elem_3_4 = wfcElementTree.Element_Create(wfcElemIds.PRO_E_STD_SEC_PLANE_VIEW_DIR, pfcArgument.CreateIntArgValue(1),3);
	elements.append(elem_3_4);
	//PRO_E_STD_SEC_PLANE_ORIENT_DIR
	Element elem_3_5 = wfcElementTree.Element_Create(wfcElemIds.PRO_E_STD_SEC_PLANE_ORIENT_DIR, pfcArgument.CreateIntArgValue(1),3);
	elements.append(elem_3_5);
	//PRO_E_STD_SEC_PLANE_ORIENT_REF
	Element elem_3_6 = wfcElementTree.Element_Create(wfcElemIds.PRO_E_STD_SEC_PLANE_ORIENT_REF, pfcArgument.CreateSelectionArgValue(dirSels2),3);
	elements.append(elem_3_6);

	WSession wSession = (WSession)session;
	ElementTree	elemTree = wSession.CreateElementTree(elements);
	FeatCreateOptions featOpts = FeatCreateOptions.create();
	featOpts.append(FeatCreateOption.FEAT_CR_INCOMPLETE_FEAT);
	WRegenInstructions regenInstr = wfcSolidInstructions.WRegenInstructions_Create();
	Model currModel = session.GetCurrentModel();
	WSolid currSolid = (WSolid)currModel;
	WFeature extrudeFeat = currSolid.WCreateFeature(elemTree,featOpts,regenInstr);
	elemTree = extrudeFeat.GetElementTree(null,FeatureElemTreeExtractOptions.FEAT_EXTRACT_NO_OPTS);
	Element sketchElem = GetSketcherElement(elemTree);
	SpecialValue sketchSpvalue = sketchElem.GetSpecialValueElem();
	Section sketch = sketchSpvalue.GetSectionValue();
	sketch.SetIntentManagerMode(true);
	Point2D center = wfcSession.CreatePoint2D(0.00,0.00);
	SectionEntityCircle circle = wfcSection.SectionEntityCircle_Create(center,300.00);
	SectionEntity entity = (SectionEntity)circle;
	sketch.AddEntity(entity);
	circle = wfcSection.SectionEntityCircle_Create(center,20.00);
	entity = (SectionEntity)circle;
	sketch.AddEntity(entity);
	sketch.SetIntentManagerMode(false);
	sketchSpvalue.SetSectionValue(sketch);
	sketchElem.SetSpecialValueElem(sketchSpvalue);
	featOpts.insert(0, FeatCreateOption.FEAT_CR_NO_OPTS);
	extrudeFeat.RedefineFeature(null,elemTree,featOpts,regenInstr);
	}
	catch (Exception e)
	{
	System.out.println("1: " + e);
	Session curSession = pfcSession.GetCurrentSessionWithCompatibility(CreoCompatibility.C4Compatible);
	curSession.UIShowMessageDialog("Error!", null);
	}
	}
static Element GetSketcherElement(ElementTree elemTree)
 {
	try
	{
	ElemPathItems sketchItems = ElemPathItems.create();
	ElemPathItem sketchItem0 = wfcElementTree.ElemPathItem_Create(ElemPathItemType.ELEM_PATH_ITEM_TYPE_ID,wfcElemIds.PRO_E_STD_SECTION);
	sketchItems.append(sketchItem0);
	ElemPathItem sketchItem1 = wfcElementTree.ElemPathItem_Create(ElemPathItemType.ELEM_PATH_ITEM_TYPE_ID,wfcElemIds.PRO_E_SKETCHER);
	sketchItems.append(sketchItem1);
	ElementPath sketchPath = wfcElementTree.ElementPath_Create(sketchItems);
	Element element = elemTree.GetElement(sketchPath);
	return(element);
	}
	catch (Exception e)
	{
	System.out.println("1: " + e);
	}
	return null;
}

Thanks everyone!
I hope it will be useful!



3 replies

V
VladiSlav17-PeridotAuthor
17-Peridot
November 25, 2019

Hello!
I have advanced a bit. Instead of creating a model from scratch, I copied the template and then deleted the template from the session:



desc = pfcModel.ModelDescriptor_CreateFromFileName(model_name);
desc.SetPath (modelLocation);
Model template = curSession.RetrieveModelWithOpts(desc, pfcSession.RetrieveModelOptions_Create());
Model newPart = template.CopyAndRetrieve("Test", null);
template.Erase();



After that, two problems arise:
1) (First problem) I run the example "otkCreateSweep.java" immediately after creation, but the code throws the same error "Model must be in current Session". But if I first create a model with one code and run an example with the second, then everything works. I understand that the model appears in the session only after the execution of the code ends, so it is impossible to do everything right away.
So I had to do this:



static int i = 1;
public Create_Part()
{
}
@Override
public void OnCommand()
{
	if (i == 1)
		{createPart();
		i++;}
	else
		addCreateSweep();
	}



But it does not look like a good solution.

2) (Second problem) I am now dealing with how to make a simple extrusion in the created model. I found the code in the PTC knowledge base that allows you to unload the tree of model in XML, it seemed to me that this would be useful, but the code could not be launched.
Knowledge Base Code:



try {
 Log.write("===============================================");
 Log.write("=== OnAfterFeatureCreate was called =======");
 Log.write("===============================================");
 Session session = pfcSession.GetCurrentSession ();
 wSolid = (WSolid)(session.GetCurrentModel());
 if ((currModel.GetType() == ModelType.MDL_ASSEMBLY) || (currModel.GetType() == ModelType.MDL_PART)) {
 try {
 //wSolid = (WSolid) sld;
 //cast exception com.ptc.wfc.Implementation.pfcPart$Part cannot be cast to com.ptc.wfc.wfcSolid.WSolid
 wSolid = (WSolid) currModel;
 wfeat = (WFeature) feat;
 } catch (Throwable e) {
 Log.write(" cast exceptoon : " + e);
 }
 ModelItem item = (ModelItem) feat;
 if (item.GetType() == ModelItemType.ITEM_FEATURE) {
 Log.write("GetType = ITEM_FEATURE");
 Log.write("featName=" + feat.GetName());
 if (wfeat != null) {
 ElementTree elementtree = wfeat.GetElementTree(null,
 FeatureElemTreeExtractOptions.FEAT_EXTRACT_NO_OPTS);
 if (elementtree != null) {
 Log.write("elementtree is not null print to XML file");
 elementtree .WriteElementTreeToFile(ElementTreeFormat.ELEMTREE_XML, "feat.xml");
 }
 } else
 { Log.write("wfeat is null");}
 }
 } else
 Log.write("current model is not part or assem");
 } catch (Throwable e) {
 System.out.println("Exception caught finial : " + e);
 e.printStackTrace();
 Log.write("Exception caught in Body : " + e);
 }



Therefore, now I understand the documentation for Creo® Parametric TOOLKIT, it says about the element tree, but everything looks pretty confusing.

I will be grateful if someone will help me with these problems, if you have experience.
Thanks in advance.


Best Regards!

Y
YaroslavSin17-Peridot
17-Peridot
November 26, 2019

Hello!



Try to pass new model as argument to addCreateSweep (Model currModel)

Model newPart = template.CopyAndRetrieve("Test", null);
addCreateSweep(newPart);

And comment/delete a line Model currModel = session.GetCurrentModel(); in addCreateSweep ()



    V
    VladiSlav17-PeridotAuthor
    17-Peridot
    November 26, 2019

    Thanks!

    True, now the model does not produce errors, but the code still does not run 😞
