OFDM Signal Reconstruction via DFT

  • March 13, 2013
  • 1 reply
  • 4236 views

I'm having trouble reconstructing an OFDM QAM signal using its amplitude and phase spectra obtained by using the DFT. The QAM signal is given in the image below.

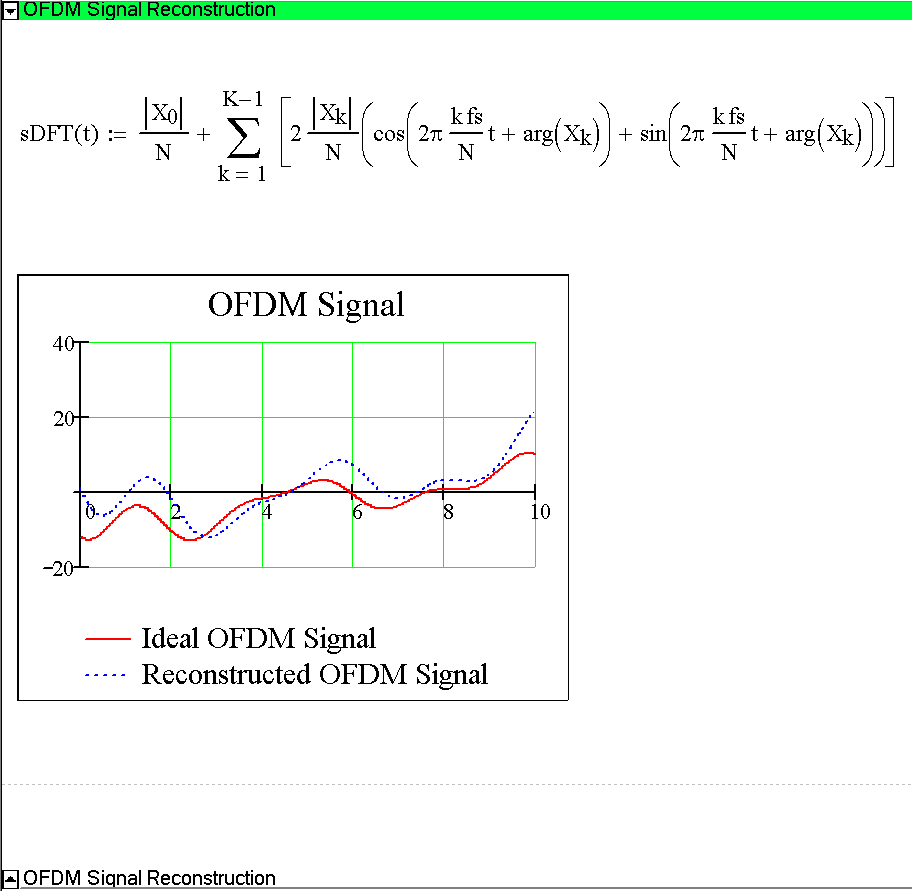

I have tried to do it so far using the below equation.


This is the closest I have reconstructed it to the original. What am I missing?

I am using Mathcad 13.

1 reply

W
Werner_E25-Diamond I
25-Diamond I
March 13, 2013

You sure would get a better respones if you attach a worksheet. From the pic alone probably nobody would be able to determine what the problem ould be.

Would the following link be of any help?

http://www.comlab.hut.fi/users/tko/geta07/GETA fall 07- OFDM with MathCAD.ppt

P
ptc-50085241-VisitorAuthor
1-Visitor
March 13, 2013

No sorry that doesn't help. I was browsing through that just last night actually. I have attached my worksheet.

W
Werner_E25-Diamond I
25-Diamond I
March 13, 2013

Jonathan Mayers wrote:

No sorry that doesn't help. I was browsing through that just last night actually. I have attached my worksheet.

Was just a try.

So hopefully someone with better technical background could jump in.

BTW,

  • are you sure about the absolute value of X0 in the definition of sDFT(t)?
  • could it be that you used the wrong vector X in the last definition? You redefined X in the Spectral Analyisis section.
