Parametric box net

  • November 4, 2014
  • 2 replies
  • 1584 views

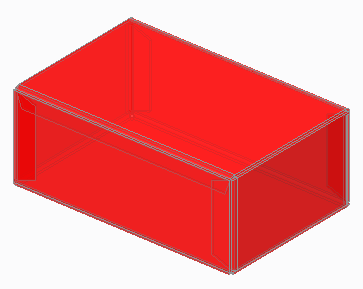

A simple cuboid box wih parameters for length, width and height. Changing these values and regenerating the model creates a custom size box.


The drawing file lets you export a DXF for cutting.

PTC Creo 2.0 Academic files and instructions are in the zip file.

      2 replies

      J
      JamesCollin1-Visitor
      1-Visitor
      November 5, 2014

      Nice work Tim. The new curriculum for Graphic Communication in Scotland has a component that requires packaging development. Sheet metal is ideal for this. There is a lot more CAD work in the courses FYI.

      T
      tbrotherhood12-AmethystAuthor
      12-Amethyst
      November 6, 2014

      How are teachers getting up to speed with the requirements for more CAD? Are there courses and is the government finding these?

      D&T in England is going through a really bad patch with reduced curriculum time, finding cuts and almost no budget for CPD.  Experienced teachers are being forced out to make way for cheaper newly qualified teachers.  I am seeing projects being taught I did in school over forty years ago.  Very sad.
