About perpendicular projection (sketch)
Q3:XZ plane is my sketch plane, How to get the“perpendicular projection point” G of point K ? I can't do that by the snap tool or project tool. (the "S" shape curve is drawn in the ZY sketch plane )
Solved! Go to Solution.
- Labels:
-
Design Exploration
- Tags:
- modeling
Accepted Solutions
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

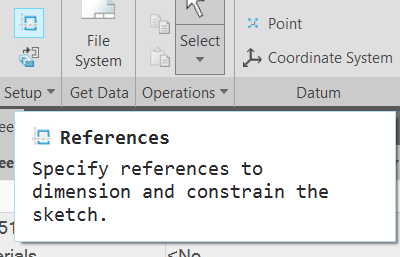

When sketching on the XZ plane, use the select references tool

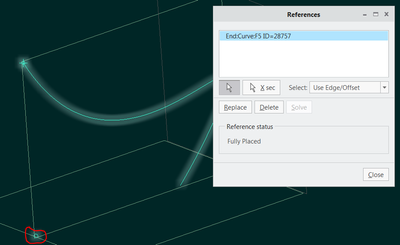

and add the endpoint of your curve that is on the YZ plane. The projection of this point will appear at location "g" as a reference point:
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
When sketching on the XZ plane, use the select references tool
and add the endpoint of your curve that is on the YZ plane. The projection of this point will appear at location "g" as a reference point:
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Thank you for your guidance. I finally understand!
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Here is a video explaining the method used in the model I posted.
