Area calcul in familly tables

  • July 25, 2014
  • 1 reply
  • 2133 views

Hello,

I need help to have the area of all instances in familly tables.

What is your method?

I have a parameter called SURFACE

And a relation : SURFACE=MP_SURF_AREA

but in the familly table, after adding the parameter SURFACE, and verifying all instances,

the aera is the same of the generic part.

My instance have different dimensions so I need each area for each instances.

Anyone have a solution?

Thanks

Laurent


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by mbonka


1 reply

M
mbonka2-Explorer
2-Explorer
July 25, 2014

Hello,

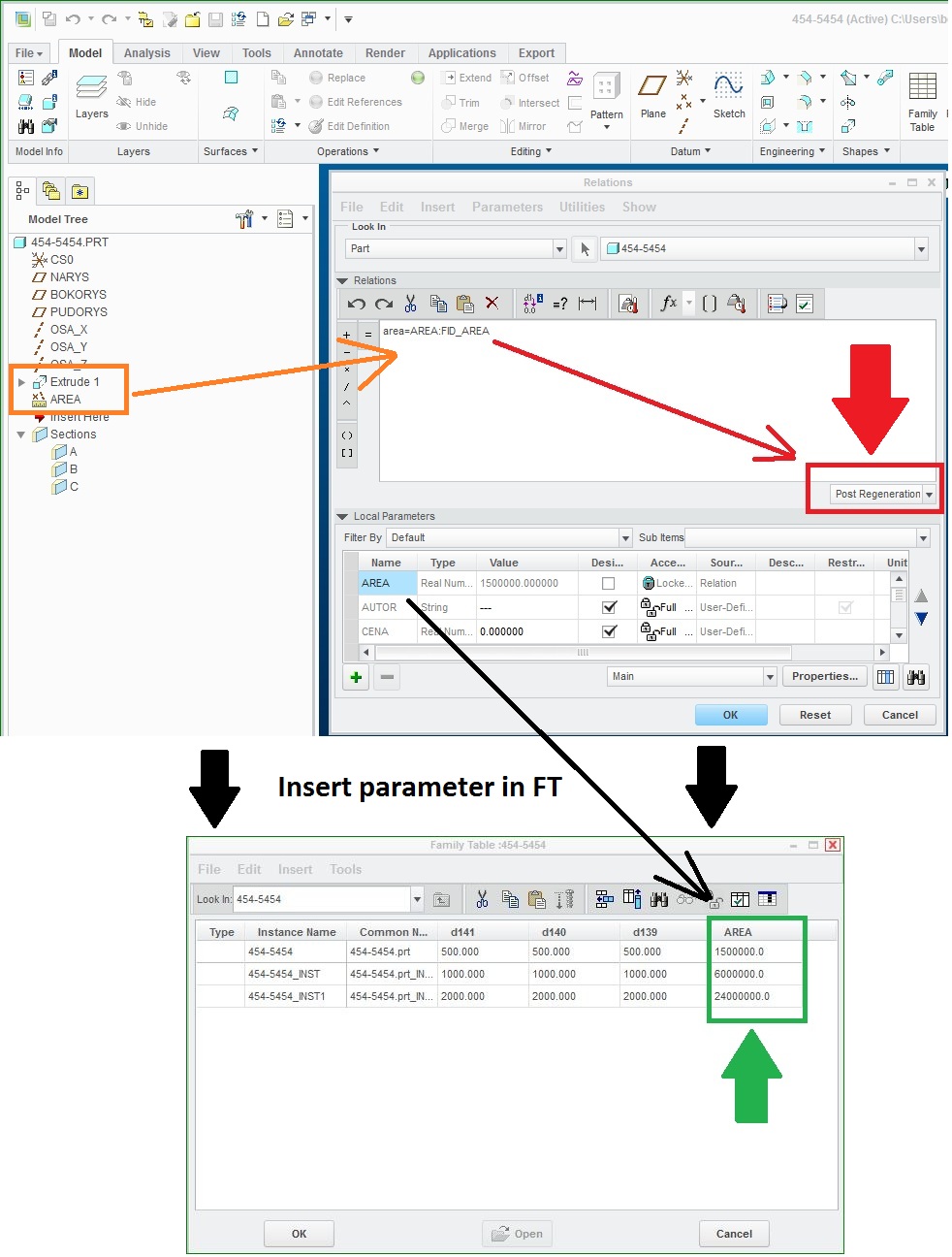

put your relation for AREA calculating in POST REGENERATION relations. (see attached picture). In my opinion it means that ProE will do following:

- regenerate model (change of size)

- calculate relations

M
mbonka2-ExplorerAnswer
2-Explorer
July 25, 2014


    L
    lzanettin1-VisitorAuthor
    1-Visitor
    July 25, 2014

    Thank you,

    it works fine,

    In my family table, is it possible to put a "-" instead of the area for some instance?

    we need the area only for gold plated instance.

    Laurent
