Bend in sheetmetal

  • June 29, 2023
  • 1 reply
  • 1151 views

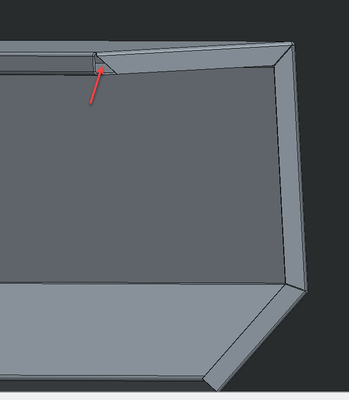

I have created a closed profile with sheet metal, but on the last two bends the corner is not closed and there is a chamfer there as shown in the following figures and attached file, how can I have a complete perpendicular edge there?









Best answer by kdirth

Remove the bend from the end of the chain to remove the chamfer.  You will then need to add your desired relief and possibly extend the wall.




1 reply

kdirth
21-Topaz I
kdirth21-Topaz IAnswer
21-Topaz I
June 29, 2023

Remove the bend from the end of the chain to remove the chamfer.  You will then need to add your desired relief and possibly extend the wall.




There is always more to learn.
M
MohaSharifi10-MarbleAuthor
10-Marble
August 21, 2023

Thank you for your reply it worked!
