CONSTRAINTS FOR FLEXIBILITY

  • November 15, 2023
  • 3 replies
  • 2591 views

Hi,



I have to make flexible a subassembly for use it in double copy in an assembly. I have to change independtly, for the two identical and flexible subassembly, the inclination angle of a pin constraints.

How can I do it?



Best regards,



Michele Barile

Best answer by pausob

Seems you should use the "enable regeneration value" checkbox:




3 replies

tbraxton
22-Sapphire II
tbraxton22-Sapphire II
22-Sapphire II
November 15, 2023

One option is to use mechanism snapshots.



To Capture a Snapshot (ptc.com)



Video tutorial: (5) Using Mechanism Snapshots to display different assembly positions on a drawing - EAC Tip-of-the-Week - YouTube

M
MB_1050896814-AlexandriteAuthor
14-Alexandrite
November 21, 2023

Hi tbraxton,



I won't to regulate the pin coupling angle by snapshots. Furthermore, I have to recall a flexible assembly in a subassembly and this subassembly in an ulterior general assembly: how can I recall the flexible quote in the general assembly?



Best regards,



Michele Barile

P
19-Tanzanite
pausob19-TanzaniteAnswer
19-Tanzanite
November 21, 2023

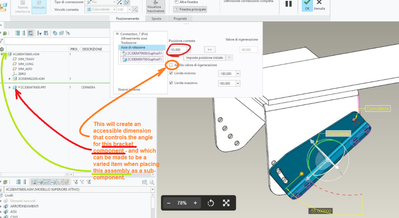

Seems you should use the "enable regeneration value" checkbox:




kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
November 29, 2023

If you are wanting to change the angle while maintaining a mechanism constraint, I would suggest using a plane in the assembly to control the base angle of the mechanism constraint.  Then use flexibility to change the angle of the plane for each instance.



If you are looking for a fixed angle in the assembly, use Flexibility only.

There is always more to learn.
