Can i change A4 layout to A3 layout after inserting general view for part in creo drafting?

  • April 1, 2015
  • 2 replies
  • 2123 views

Hai everybody,

Currently i am create general view for parts in A4 layout, after inserting some parts general views, space not enough for inserting some parts in it, i am desired to change layout from A4 to A3 is it possible to change it. if yes how to do?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by MartinHanak

Hi,

in Creo 2.0:

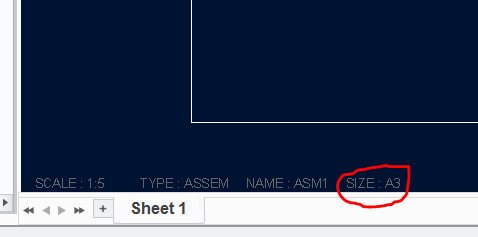

doubleclick A4 at the bottom of graphic window.


select field containing size, open the list and select requested size


Martin Hanak

2 replies

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
April 1, 2015

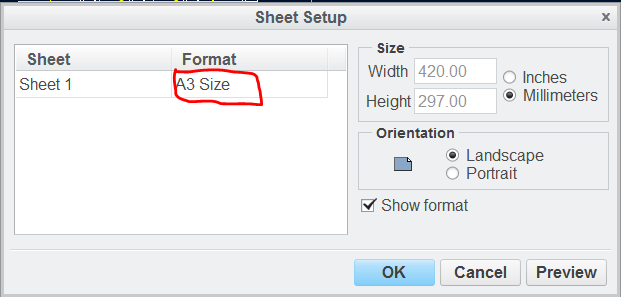

On the sheet tab (sheet 1), right click and choose setup (or go to the layout tab and select sheet setup). You can change your sheet size there.

M
MartinHanak24-Ruby IIIAnswer
24-Ruby III
April 1, 2015

Hi,

in Creo 2.0:

doubleclick A4 at the bottom of graphic window.


select field containing size, open the list and select requested size


Martin Hanak
