Component placement defining for a slider connection type.

  • May 7, 2023
  • 2 replies
  • 4250 views

Hello everyone,

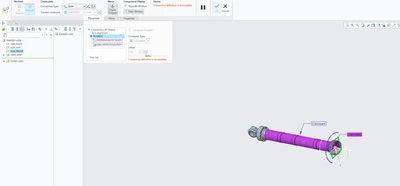

I am using Creo 9.0.0.0, and I am trying to define a slider connection for a piston and cylinder to perform its mechanism. I used to do that several times before and it worked. But this time once I define the rotation it is telling me "Connection definition is incomplete".  as shown in the figure.



I have defined two assemblies, the first one which is the moving parts including the cylinder. The second assembly is the fixed parts including the piston.



I am not sure why it is not working with me.












2 replies

P
19-Tanzanite
pausob19-Tanzanite
19-Tanzanite
May 7, 2023

Without seeing the definition of the "axis alignment" for the joint, I am assuming that it is the centre axis of the piston.

Then the plane you are choosing for fixing the "rotation" is perpendicular to the axis of motion - so it does not restrict any rotation about this axis.



I'd expect a pair of planes highlighted in orange for the "rotation" definition in a slider joint:






A
AA_104103793-NewcomerAuthor
3-Newcomer
May 8, 2023

Your approach is correct. However, the planes will restrict the rotation, but it will allow a motion in one axis:




A
AA_104103793-NewcomerAuthor
3-Newcomer
May 8, 2023

I would appreciate your help if you know how to solve it. At the moment I am stuck, I could not figure out the solution.

kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
May 8, 2023

If you are wanting rotation and extension, you need to use a cylinder constraint.




The slider constraint will not allow for rotation.  By picking planes perpendicular to the axis for Rotation, you have created a bad connection.  The rotation constraint for a slider needs to be perpendicular to the axis to control rotation.




There is always more to learn.
kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
May 8, 2023

Here is an example of both types of connections in an assembly.  The first rod uses cylinder. The second rod uses Slider.
