Display simmetric tolerance as superscript by default

  • November 23, 2021
  • 1 reply
  • 1790 views

I am using Creo Parametric 4.0 M140

Dear All,
is it possible to configure options to have automatically selected Superscript text when I choose Tolerance Symmetric in ribbon Dimension?

Thanks

Best answer by MartinHanak
@ENRICORIPAMONTI wrote:

Dear Martin,

attached an explantion with picture.
Let me know.



Thanks a lot

Enrico

Hi,

step 1. define mapkey

mapkey tol_sym_sup ~ Command `ProCmdPmaOptDimTolMode` `Symmetric`;\
mapkey(continued) ~ Command `ProCmdPmaChkDimTolSupScr` 1;

step 2. customize context menu




  • select dimension
  • press right mouse button
  • select mapkey from context menu



1 reply

M
MartinHanak24-Ruby III
24-Ruby III
November 23, 2021
@ENRICORIPAMONTI wrote:

I am using Creo Parametric 4.0 M140

Dear All,
is it possible to configure options to have automatically selected Superscript text when I choose Tolerance Symmetric in ribbon Dimension?

Thanks

Hi,

please attach a picture showing requested state.

    E
    ENRICORIPAMONTI4-ParticipantAuthor
    4-Participant
    December 2, 2021

    Dear Martin,

    attached an explantion with picture.
    Let me know.



    Thanks a lot

    Enrico

    M
    MartinHanak24-Ruby IIIAnswer
    24-Ruby III
    December 2, 2021
    @ENRICORIPAMONTI wrote:

    Dear Martin,

    attached an explantion with picture.
    Let me know.



    Thanks a lot

    Enrico

    Hi,

    step 1. define mapkey

    mapkey tol_sym_sup ~ Command `ProCmdPmaOptDimTolMode` `Symmetric`;\
mapkey(continued) ~ Command `ProCmdPmaChkDimTolSupScr` 1;

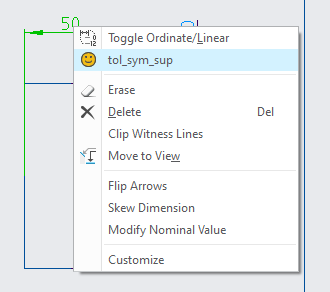

    step 2. customize context menu




    • select dimension
    • press right mouse button
    • select mapkey from context menu
