Flange in Sheemetal or spinal bend

joe_c
14-Alexandrite

Flange in Sheemetal or spinal bend

Folks



1st question: Can i bend this seam into a flange using the spinal bend or similar feature? I tried using the sheetmetal flange, but it will only bend it by sections, maybe because is not a continuous feature but modeled in several flanges.

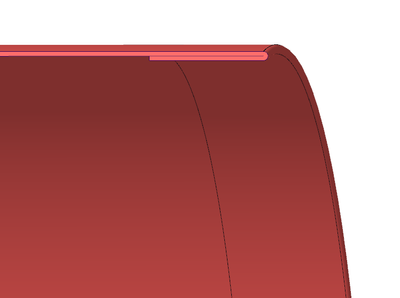

I want to bend the whole seam 1/2" long, this way:






2nd question: Can I bend a symmetrical flange created in sheetmetal into a non-symmetrical flange?

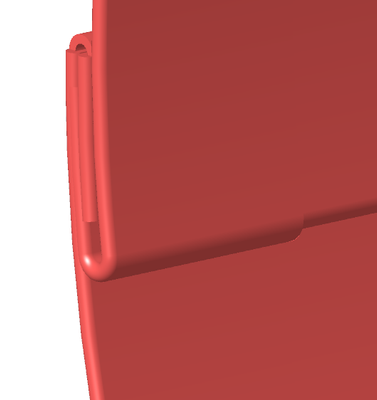

Side view of the non-symmetrical flange (for illustration purposes)

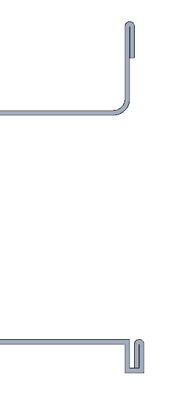

The front view looks like this


front view




thanks

1 REPLY 1
AndrewK
Community Manager
(To:joe_c)

Hi @joe_c,

Thank you for your question.

Your post appears well documented but has not yet received any response. I am replying to raise awareness. Hopefully, another community member will be able to help.

Also, feel free to add any additional information you think might be relevant.
