Hatching error in drawing (Creo 10)

[MohanS]

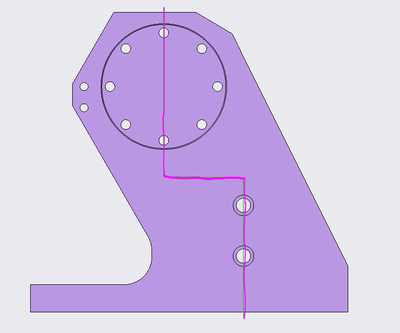

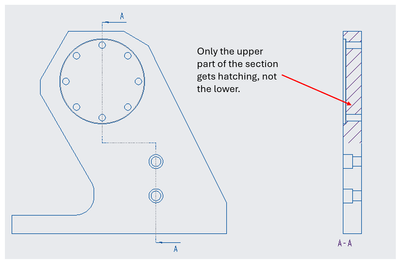

Hi I'm trying to create an offset section (See the pic attached). While showing the section on drawing, I'm not getting the hatch properly.

[Kotom-Eng]

You are in the wrong forum.

PTC has two CAD systems:    Creo+ and Creo Parametric    and     Creo Elements Direct.

Which makes it confusing.

More, for Creo Elements Direct:

- The 3D software name is Modeling, and

- The 2D software name is Drafting.

For Creo+ and Creo Parametric, use only this tab:

You should move your post to this community to have a better chance to get an answer.

[MohanS]

Sorry. I was new. Anyways it has been partially resolved. I'll post there from next time.

[BenLoosli]

I built an offset section in Creo 9.0.9.0 and Creo 11.0.0.0 and both displayed the cross hatching as expected.

What build of 10 are you using?

[MohanS]

Hi Ben, it is 10.0.4.0

There is a solution I posted in martin's comment sections below. Thanks.

[MartinHanak · Accepted solution]

Hi,

the problem can be "model related".

Suggestion: Create simple test model and try reproducing the problem on it. In case of success upload it.

[MohanS]

Thanks Martin!

I tried recreating a similar section in another simple model, just to check if the issue is with Creo settings or something. But it worked there.

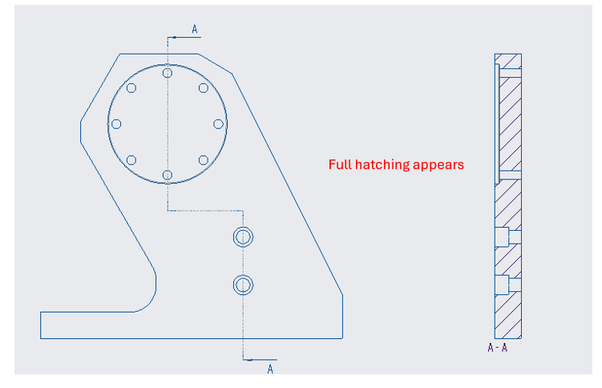

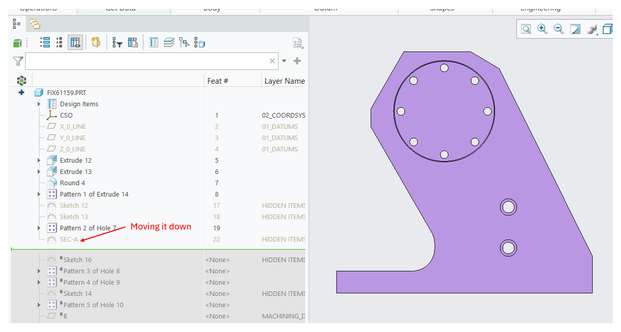

Strange! I don't know what's wrong in the model, but I found an interim solution:

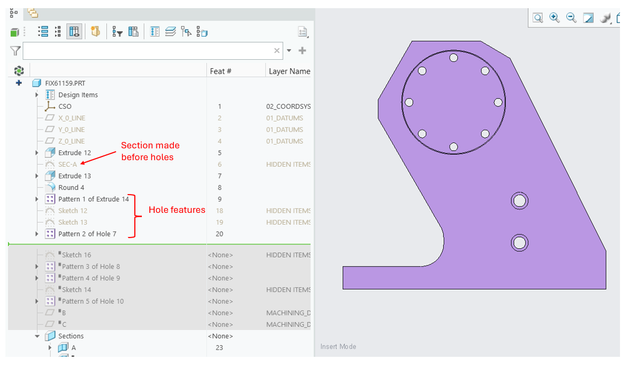

It works when I create the section before hole featues.

[Dale_Rosema]

Try moving the bottom hatch line .001" left or right and see if that works.

[MohanS]

Thanks Dale, but I tried the same. It did not help. There is a solution I could manage to find. (Please see Martin's trailing comments)

[ZRJ]
