Hiding mirrored surfaces in a drawing?

  • July 17, 2015
  • 3 replies
  • 1781 views

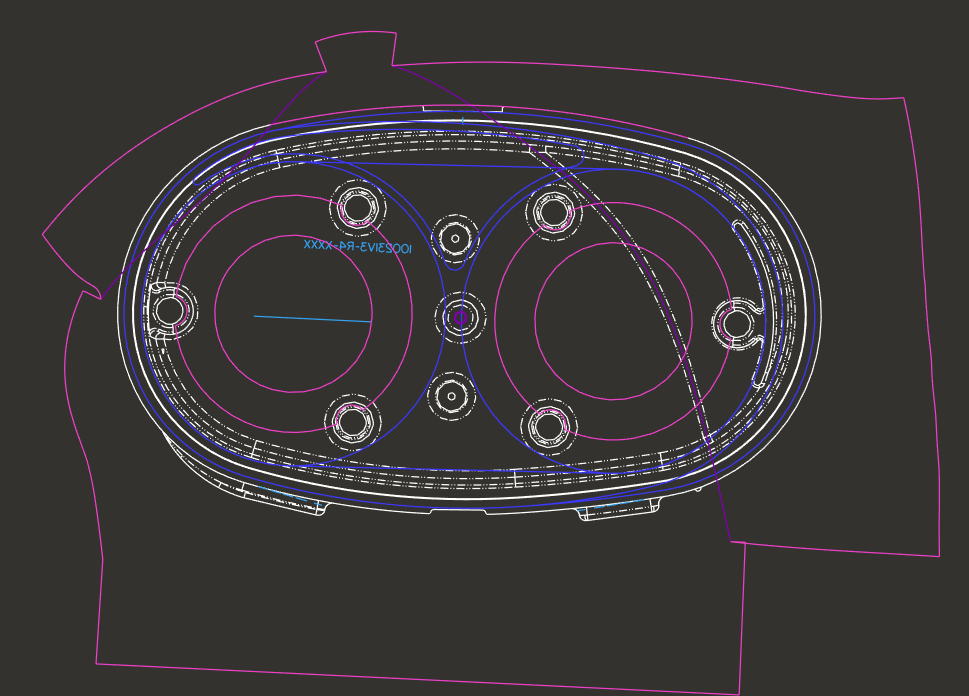

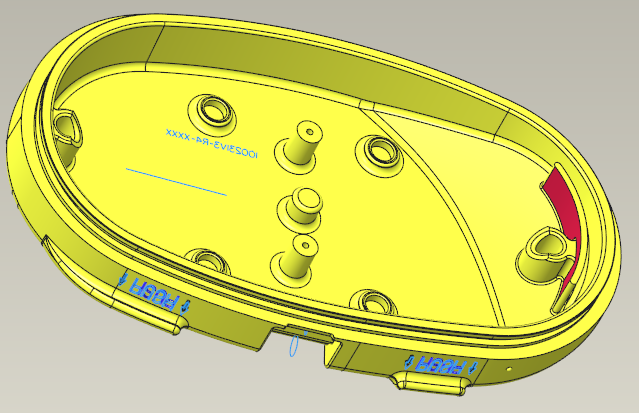

I have lid that is a mirror of the lid on the opposite side of my container. I would like to make a drawing for both lids but when I place a view of the mirrored one, it shows all the surfaces from the mirrored part.  They are hidden in the model.  Is there an easy way to hide them in the drawing?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by DonSenchuk

Put them on a layer, hide the layer in the drawing.

3 replies

D
DonSenchuk12-AmethystAnswer
12-Amethyst
July 17, 2015

Put them on a layer, hide the layer in the drawing.

K
KenFarley21-Topaz II
21-Topaz II
July 17, 2015

I've found that hiding the mirror feature does the trick, usually. If not, Don's method also does the job.

A
A.DelNegro1-VisitorAuthor
1-Visitor
July 17, 2015

Thanx guys. I would expect that hiding the feature in the part should do this, but it does not. I had to make the extra layer.
