How to create gap/space in between two dimension line

Hi,

Can someone show the method how can i get this space in between dimension line?

How to break the dimension line to allow another line go through?

CREO VERSION 9.0.6

24-Ruby III

Hi,

use Insert Break command presented in uploaded video.

14-Alexandrite

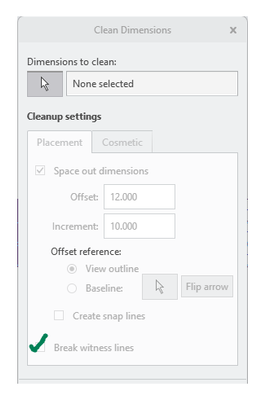

One can use the "Cleanup Dimensions" command under Annotate Tab --> Edit Group.

What you wish to break in the pic is the "Witness Line" and not the "Dimension Line"

Tick mark the "Break Witness Lines"
