How to project a sketch onto multiple surfaces at once?

  • August 12, 2022
  • 3 replies
  • 1892 views

Hi all,

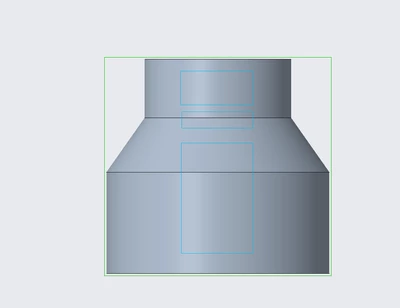

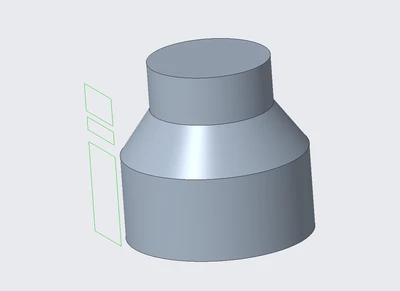

In the image below, I would like to project the sketch onto the revolve. I would like to project onto all of its surfaces at one time, if possible. Please note that the sketch overlaps between different surfaces. Preferably, I'd like to do this such that I could even extrude/offset the sketch from the surface.



Anybody have any suggestions? Thank you in advance!



Thank you,

Jeff Houston



Best answer by tbraxton

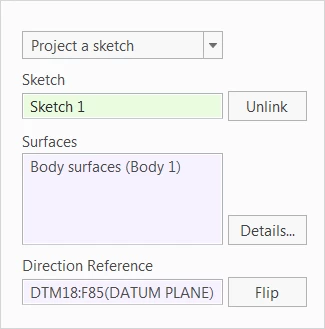

One option is to select body surfaces (if you are in Creo 7+).

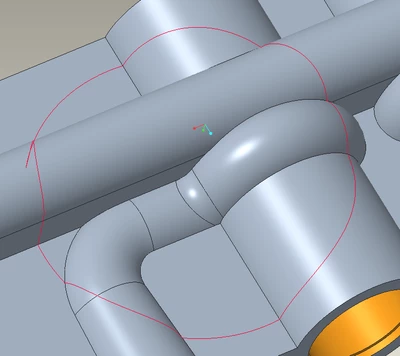

Circle sketch projected onto a body








3 replies

tbraxton
22-Sapphire II
tbraxton22-Sapphire IIAnswer
22-Sapphire II
August 12, 2022

One option is to select body surfaces (if you are in Creo 7+).


Circle sketch projected onto a body








    D
    DRFaust12-Amethyst
    12-Amethyst
    August 13, 2022

    Creo 6 Student Version




      kdirth
      21-Topaz I
      kdirth21-Topaz I
      21-Topaz I
      August 15, 2022

      For the offset/extrude part of the question I would suggest using Offset > Expand > Sketched Region.
