IFX - Place Screw on cylindrical surface

  • March 6, 2024
  • 1 reply
  • 1146 views

How to insert screws by positioning the screw on a cylindrical surface?

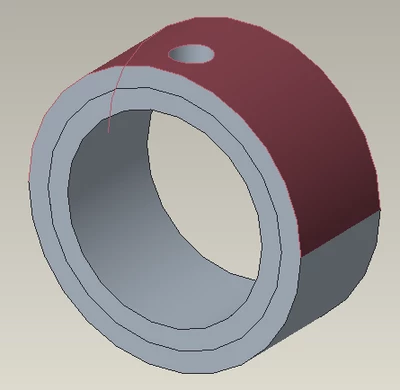

I'm using Creo+ and I didn't find any configuration that enables the selection of cylindrical surfaces for positioning the screw head and washer. The red surface shows the location for inserting the screw head.

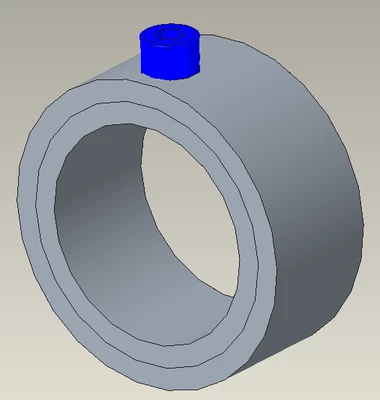

This is the expected end result:


 Is there any automatic way for this positioning?

1 reply

B
23-Emerald III
BenLoosli23-Emerald III
23-Emerald III
March 6, 2024

Create a plane tangent to the red surface at the hole center, then place your washer and screw.

V
Victor_Brumatto9-GraniteAuthor
9-Granite
March 12, 2024

Hi BenLoosli,



Thank's for your help, but I would like a solution within the IFX tool. I know an I have already done other alternatives.
I think this function should already be common in IFX but it isn't. I would like to know if there is any setting that changes this.



Tks.
