Measuring Tool Uses Points Rather Than Surface

  • August 21, 2025
  • 2 replies
  • 873 views

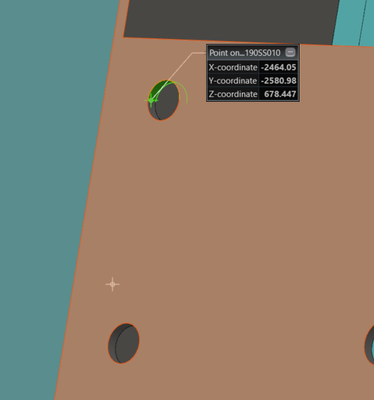

I would like to measure the distance between the centre of 2 holes, usually I would select the measure tool and select the surfaces within both holes to get a distance between the centres. I have tried to do this but the measure tool seems to only want to select certain surfaces and selecting the point rather than face.



Can anyone help with this please?




2 replies

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
August 21, 2025

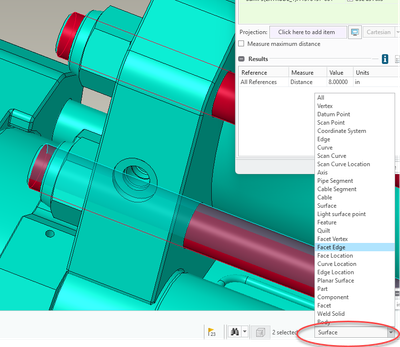

Change the filter in the bottom right hand corner of the screen to surface so it will only select surfaces.

I make a mapkey for measuring distance to get this every time and then if I need something else, i adjust the filter afterwards.




Yogesh.T
Yogesh.T14-Alexandrite
14-Alexandrite
August 22, 2025

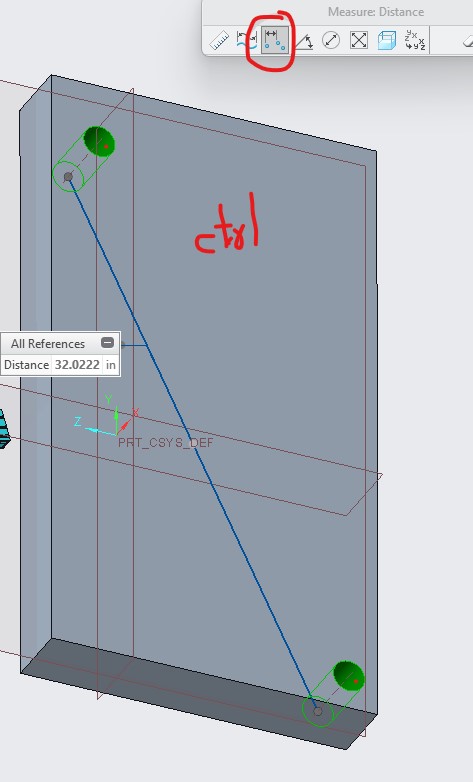

Try these two options.

activate axis and measure axis - axis

Point to point , first id surf -ctrl-second id surf.

SEE attach both. Hope it helps.

Yogesh
