Question

OPEN PART FROM BILL OF MATERAIL TABLE

  • March 29, 2018
  • 1 reply
  • 2491 views

Is there any way to open a part from a bill of material table present in drawing???

everytime while updating a part drawing, we need to type a part name which is a drawing no. in my case. so iwant to open a part or its drawing from bill of material table present in drawing file.

1 reply

M
mbonka2-Explorer
2-Explorer
March 29, 2018

Hello @kbhavsar-3



 don´t know if it´s possible, but can provide you alternative solution.

It´s based on drawing format rearange. ADD DESIRED PARAMETER OUT OF DRAWING SHEET. Than you can edit parameter from drawing space (don´t have to open part - parameters).

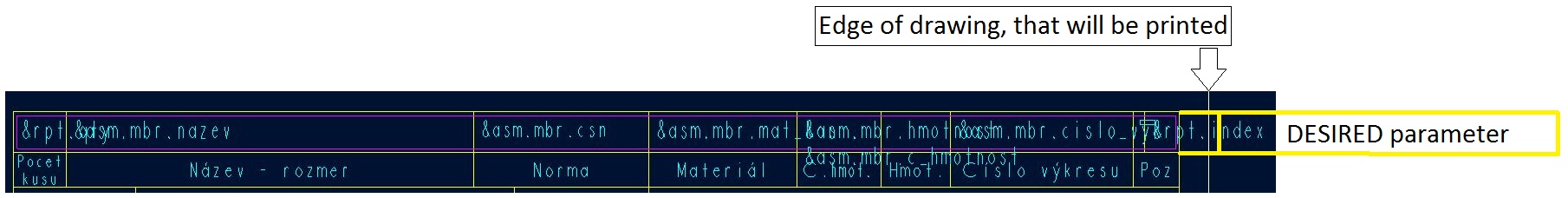

See following picture:




At the end you can edit desired parameter directly in drawing space and it will not be pritnted on drawing.



Regards

@mbonka

K
kbhavsar-34-ParticipantAuthor
4-Participant
March 29, 2018

Hello @mbonka,

Thanks for the suggestion. but i donw want to change the parameter. i want to open a drw file to update dimensions, etc. so if i can add anything in one more column which will open my drawing of that part.

K
kbhavsar-34-ParticipantAuthor
4-Participant
March 29, 2018

If i will have 50 parts of assembly. i will have to open each part drawing file by typing its name. in place of that, i need something which is there in bom table of  assembly drw file. which will open up my drawing file of any part.
