## Parametric Note in a Dimension

Hello everybody.

I'd like to use a parametric note of a Hole feature (&NOTE_1:FID_xxx)

inside a manual dimension using overwrite option (@o ...).

The purpose is to have a typical hole annotation (diameter and pitch)  inside the dimension and not as separate annotation).

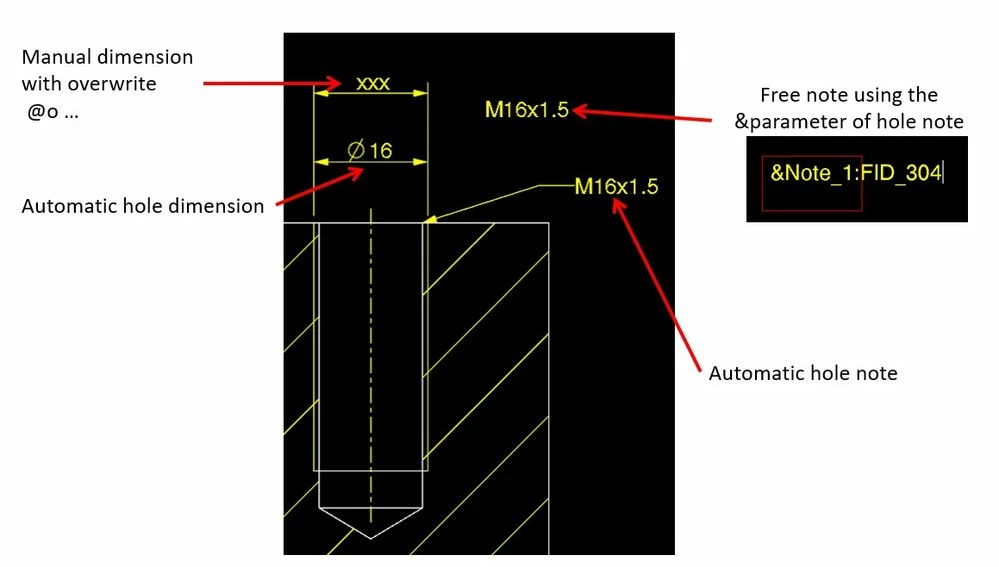

In the pic I'd like to see "M16X1.5" as a dimension.

Thanks

Pierluigi

4 REPLIES 4
22-Sapphire III
(To:pdiletti-2)

Overriding dimensions is never a good idea!

What is wrong with the standard hole note?

You do not need to use the 2 diameter dimensions when calling out the hole.

7-Bedrock
(To:BenLoosli)

Hello

I'm really agree the overwrite dimension is a bad idea !

The point is the std annotation (M16x1.5) is a note with an arrow we should address to the diameter value Ø16, but we don't use this kind of note.

We normally use the text (M16x1.5) in the dimension lines.

I can write a note using the parameter of this hole annotation (&NOTE_xxx:FID_xxx) but not inside the dim .

Thnks

Pierluigi

22-Sapphire I
(To:marrigoni)

I agree with @BenLoosli

I don't think there is any option to add such note in Overwritten dimension, what about relating note to Overwritten dimension, possibly it can be an option.

11-Garnet
(To:Mahesh_Sharma)

Yes

Today the solution is to attach (relate to object) the note to the "empty" overwrite dimension .

Thanks

Pierluigi
