Pattern in Part environment

  • May 25, 2022
  • 2 replies
  • 1382 views

Is there a way to create pattern in two opposite directions by using plane as directional reference with varying members and spacing? See attach image, I have 5 members at 200 spacing in one direction and want 6 members at 250 in exactly opposite direction.

Best answer by tbraxton

Yes, it is possible. The easiest implementation is to use a pattern table. Creo 7 model enclosed as an example.






2 replies

P
19-Tanzanite
pausob19-Tanzanite
19-Tanzanite
May 26, 2022

This pattern is possible if you use dimensional pattern and relations:

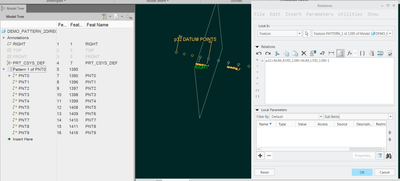

In the example above, the pattern is controlled by changing the parameters of feature "PNT0"



Feature relation:

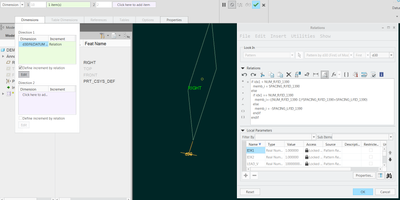

Pattern definition and relation:




Note: this is probably not easy to understand for (novice) end-users.

The parameters and the feature relation could have been defined at part level.

But the pattern relation has to be buried inside the pattern definition.

    tbraxton
    22-Sapphire II
    tbraxton22-Sapphire IIAnswer
    22-Sapphire II
    May 26, 2022

    Yes, it is possible. The easiest implementation is to use a pattern table. Creo 7 model enclosed as an example.
