Radius and Diameter Dimensions
Team,

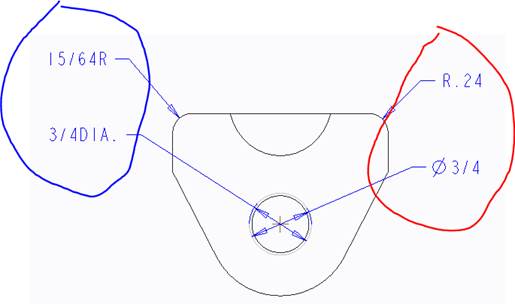

I have been doing some research on the how the rad and Dia dimensions are called out and am not finding very much. I am looking to have to default callout for a radius and Diameter to be a suffix instead of a prefix. At the as time I would like to use the “DIA” instead of the diameter symbol. I have circled the desired in blue and the default in red below. I have looked in the config.pro and the .dtl file and didn’t see any options that would help. I am thinking that there must be a way to change it because by default there is a “R” or Diameter symbol is there in the prefix field of the Dimension Properties dialog box so it should be able to be changed. Is there a way to do this?
