Radius dimension arrow display in Creo 2.0

  • April 16, 2015
  • 3 replies
  • 3755 views

Hi All,

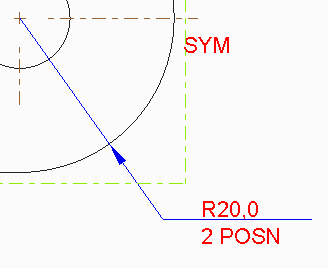

I would like to set my radius arrows to lead to the radius centre point, as per ISO standards:



I have set my .dtl file to "radial_dimension_display std_iso" which matches the example in the PTC online help files here. However, my dimensions are still displaying with no leader, as per "std_asme". Any pointers, please?



Many thanks,



Andy


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by acoates

Just to close this out, sadly this is known bug with no plan to resolve.

3 replies

A
acoates1-VisitorAuthor
1-Visitor
April 17, 2015

Quick nudge: can anybody help, please?

L
lsrutkowski1-Visitor
1-Visitor
April 17, 2015

Andy,

I do not have access to any listing of the ISO standard for how the dimension lines for a radius dimension should be drawn, but if you need to move the arrow's position to meet standard, try using the "flip arrows" option under the right-click menu for the dimension (or use the shortcut for this which is to right-click while you are dragging the radius dimension with the left-mouse-button held down).

On the other hand, if the issue is the text orientation, the config option to look at is default_raddim_text_orientation.

A
acoates1-VisitorAuthor
1-Visitor
April 21, 2015

Thanks Larry. I've been using the flip arrows in the meantime to get the desired result. It's a bit of a shame that the result of the config option doesn't appear to do what it says it will, but I'm beginning not to be surprised by Creo's idiosyncrasies!

A
acoates1-VisitorAuthorAnswer
1-Visitor
August 12, 2015

Just to close this out, sadly this is known bug with no plan to resolve.
