Save assembly Representation as separate assembly

  • July 18, 2024
  • 2 replies
  • 1445 views

I have an assembly that has multiple representations , am using Creo 8 and no windchill.

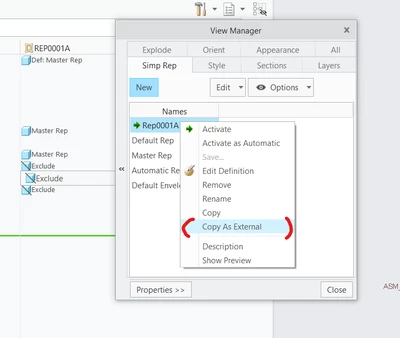

I want to save one representation as standalone assembly without referencing main assembly. Below is the workflow I have tried:

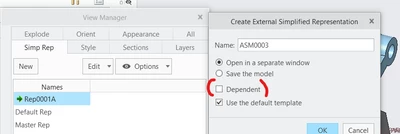

When I use above method , I get new assembly as per below image. I did not select dependent checkbox



My question is:

1. why does my new assembly has different icon?

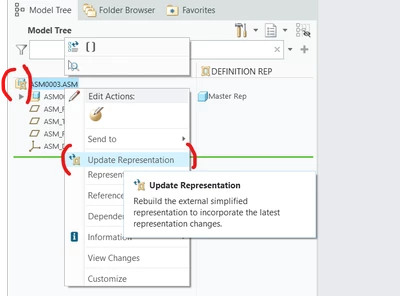

2. Why does new assembly still being linked with main assembly (see below image)






Best answer by Lewis_Maina_M

I did research on this topic , an this is the findings:

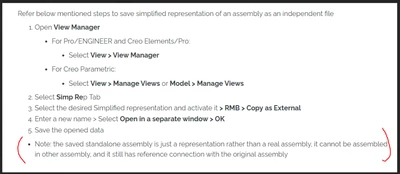

Its possible to save a representation as a stand alone assembly but its still a representation rather than a real assembly hence cannot be assembled in other assembly and it still has reference connection with the original assembly. See  below image






Marking this question as resolved

2 replies

L
Lewis_Maina_M13-AquamarineAuthor
13-Aquamarine
July 18, 2024

My new assembly ASM0003 is now parent to initial assembly ASM001. I would like to understand what's going on.




L
Lewis_Maina_M13-AquamarineAuthorAnswer
13-Aquamarine
July 24, 2024

I did research on this topic , an this is the findings:

Its possible to save a representation as a stand alone assembly but its still a representation rather than a real assembly hence cannot be assembled in other assembly and it still has reference connection with the original assembly. See  below image






Marking this question as resolved
