Search query to find curves and surfaces within a Style (ISDX) super feature

tbraxton
21-Topaz II

Search query to find curves and surfaces within a Style (ISDX) super feature

Has anyone ever built a search query that will return the curves or surfaces from within ISDX super features? I would like to build a query that will find the curves or the surfaces that are within ISDX features but have not been able to find a way to date. The help files are nonexistent for this, so I am asking here.

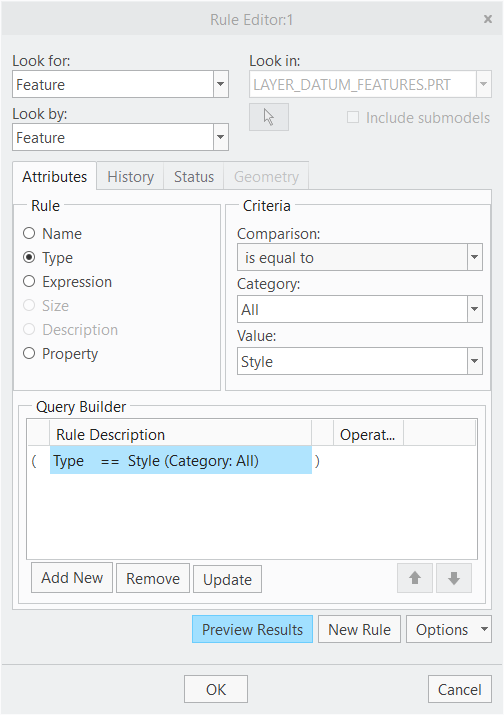

This is as close as I have found but it returns the Style features and not the curves or surfaces. I do not see any options in the look for selections that would enable this but perhaps I am missing something.






========================================
Involute Development, LLC
Consulting Engineers
Specialists in Creo Parametric
1 ACCEPTED SOLUTION

Accepted Solutions

Your query will return features because you are looking for them.

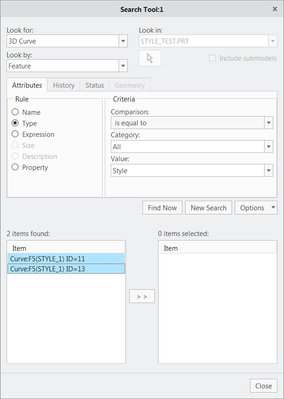

Try looking for 3D curves, etc... like this:




View solution in original post

3 REPLIES 3

Your query will return features because you are looking for them.

Try looking for 3D curves, etc... like this:




tbraxton
21-Topaz II
(To:pausob)

I missed something when I was trying this. Setting the category to "All" which will then make available the type "Style" available for selection.



The 3D curve moniker is also misleading as style curves can be planar curves. I guess there is no distinction for that in the selection criteria. I want to be able to distinguish between 3D and planar curves for automatic selection. This may not be supported.



It would be tremendous if PTC would document the matrix for the query builder that the development team surely must have somewhere to track the interdependencies and the nomenclature of the objects. I guess they figure that trial and error based on the UI presentation is good enough documentation.

========================================
Involute Development, LLC
Consulting Engineers
Specialists in Creo Parametric

yes, it works on my end...

I think you need to set the "look for", then "look by", otherwise, the GUI will throw road-blocks.
