Skeleton modelling reference sketch

Forum|Forum|2 years ago
November 5, 2023
1 reply
3039 views

I am using PTC Creo 8.0 and I need to do a model about a real object ( an old calculator), and I don't know how to start the sketch.

If somebody could send, how the reference sketch looks like (for skeleton modelling) that would be a lot of help.

The pictures show the calculator.

tbraxton

22-Sapphire II

With regard to skeleton modeling strategy, you will need to provide more details what you are attempting to use the skeleton for. To reverse engineer a master model of the molded housings of that calculator, I see no need for using a skeleton.

You can import your photos into a Creo model to use as a reference when sketching. Ideally you will get photos of a top and side view (orthographic projection views) and import them into the top and side planes in a model. You can then use these as a guide to create the sketches needed to capture the form factor in the Creo part.

Details on how to place an image on a plane:

To Insert an Image on a Datum Plane or a Planar Surface (ptc.com)

About images in Creo:

About Images (ptc.com)

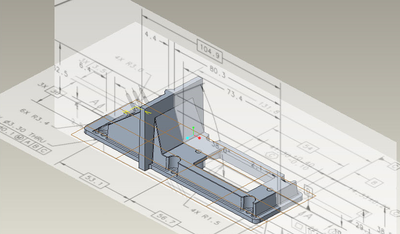

This is an example of how images from a drawing were used to create a Creo part with the drawing views imported as a reference.
