Sketching with same fillet radius

Hi,

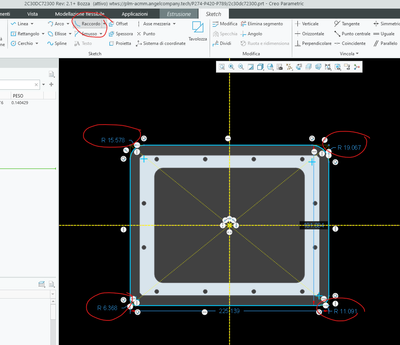

is there a manner to drawing same fillet radiuses while sketching, without use relations between dimensions?

Best regards



Michele Barile






















ACCEPTED SOLUTION

Accepted Solutions
mkajdan
14-Alexandrite
(To:MB_10508968)

You can also use the rounded rectangle shape in the Shapes tab in the sketcher palette.






View solution in original post

2 REPLIES 2
StephenW
23-Emerald III
(To:MB_10508968)

use the Equal constraint.






mkajdan
14-Alexandrite
(To:MB_10508968)

You can also use the rounded rectangle shape in the Shapes tab in the sketcher palette.
